- 產品型號：95298711
- 頻率：27.000MHz
- 尺寸：3.2x2.5mm
- 產品介紹：AKER晶體諧振器,C3E-27.000-10-1530-X-R,車載控制器6G晶振,C3E-18.432-10-1530-X-R,藍牙晶振，美國AKER安碁晶振，進口晶振，C3E系列編碼為：C3E-27.000-10-1530-X...
-
AKER晶體諧振器,C3E-27.000-10-1530-X-R,車載控制器6G晶振
航欄(16).jpg)
.jpg)
AKER晶體諧振器,C3E-27.000-10-1530-X-R,車載控制器6G晶振,C3E-18.432-10-1530-X-R,藍牙晶振，美國AKER安碁晶振，進口晶振，C3E系列編碼為：C3E-27.000-10-1530-X-R，頻率為：27.0000 MHz，小體積晶振尺寸：3.2x2.5mm，四腳貼片晶振，無源晶振，石英晶體諧振器，石英貼片晶振，27.000MHz標稱頻率，10pF負載電容，1530：±15PPM頻率容差和±30PPM頻率穩定，基本模式X：-40℃至+85℃，R：磁帶和卷軸包裝- 1000pcs卷軸。C3E系列具有超小型，輕薄型，耐熱及耐環境特點。應用于：通訊設備，汽車電子設備，車載控制器，可穿戴設備，無線網絡，藍牙模塊，智能手機，平板電腦，儀器儀表設備，醫療設備，數碼電子等應用。
.jpg)

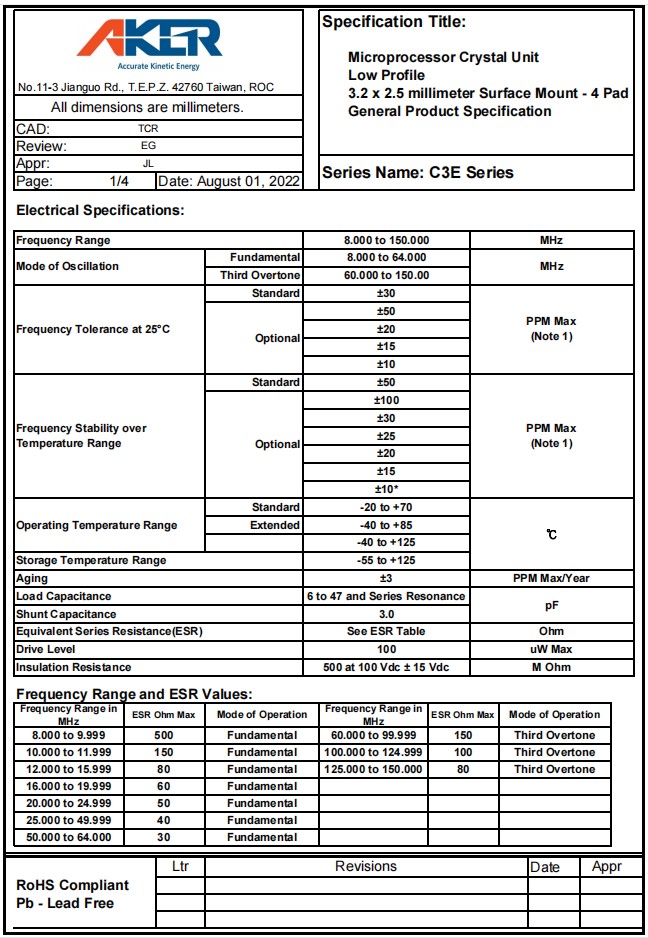

AKER晶體諧振器,C3E-27.000-10-1530-X-R,車載控制器6G晶振,C3E-18.432-10-1530-X-R,藍牙晶振，參數表
| Frequency Range | 8.000 to 150.000 | MHz | |
| Mode of Oscillation | Fundamental | 8.000 to 64.000 | MHz |
| Third Overtone | 60.000 to 150.00 | ||
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±50 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
|
Frequency Stability over Temperature Range |
Standard | ±50 |
PPM Max (Note 1) |
| Optional | ±100 | ||
| ±30 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| ±10* | |||
| Operating Temperature Range | Standard | -20 to +70 | ℃ |
| Extended | -40 to +85 | ||
| -40 to +125 | |||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±3 | PPM Max/Year | |
| Load Capacitance | 6 to 47 and Series Resonance | pF | |
| Shunt Capacitance | 3.0 | ||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |
| Drive Level | 100 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |
.jpg)

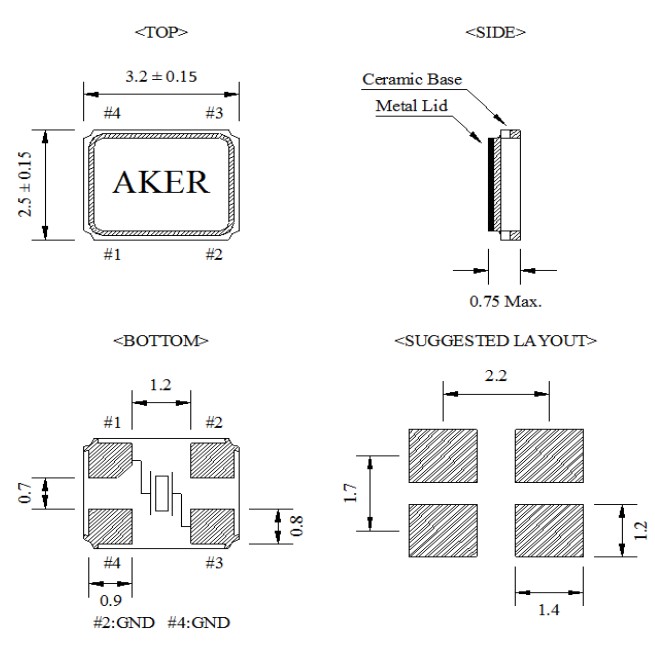

AKER晶體諧振器,C3E-27.000-10-1530-X-R,車載控制器6G晶振,C3E-18.432-10-1530-X-R,藍牙晶振，尺寸圖
| 型號 | 供應商 | 石英晶體諧振器 |
| C3E-25.000-8-50100-X1-R | Aker晶振 | Crystal 25MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-25.000-10-1530-X-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-16.000-10-1530-X-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-26.000-10-1530-X-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-40.000-10-1530-X-R | Aker晶振 | Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R |
| C3E-27.000-10-1530-X-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-18.432-10-1530-X-R | Aker晶振 | Crystal 18.432MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-48.000-10-1530-X-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R |
| C3E-16.000-8-50100-X1-R | Aker晶振 | Crystal 16MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-30.000-10-1530-X-R | Aker晶振 | Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R |
| C3E-12.000-8-50100-X1-R | Aker晶振 | Crystal 12MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-12.000-10-1530-X-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-54.000-10-1530-X-R | Aker晶振 | Crystal 54MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R |
| C3E-20.000-10-1530-X-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-27.000-8-50100-X1-R | Aker晶振 | Crystal 27MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-32.000-10-1530-X-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R |
| C3E-24.000-10-1530-X-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C3E-27.000-20-3030-X-R | Aker晶振 | Microprocessor Crystal Unit Low Profile 2.5 x 3.2 millimeter Surface Mount |
| C3E-31.250-8-1530-X-R | Aker晶振 | Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-13.000-12-1520-R | Aker晶振 | Crystal 13MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-16.000-8-1520-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-19.6608-12-1520-R | Aker晶振 | Crystal 19.6608MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-50.000-12-1520-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-27.000-8-1530-X-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-40.000-8-1530-X-R | Aker晶振 | Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-38.400-8-1520-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-33.000-10-1520-R | Aker晶振 | Crystal 33MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-30.000-12-1520-R | Aker晶振 | Crystal 30MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-26.000-8-1520-R | 進口晶振 | Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-20.000-12-1520-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-16.384-8-1520-R | Aker晶振 | Crystal 16.384MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-22.1184-12-1530-X-R | Aker晶振 | Crystal 22.1184MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-54.000-12-1520-R | Aker晶振 | Crystal 54MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-18.080-8-50100-X1-R | Aker晶振 | Crystal 18.08MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-32.000-12-1530-X-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-14.7456-10-1530-X-R | Aker晶振 | Crystal 14.7456MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-36.000-10-1530-X-R | Aker晶振 | Crystal 36MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-13.000-12-1530-X-R | Aker晶振 | Crystal 13MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-33.333-10-1520-R | Aker晶振 | Crystal 33.333MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-44.000-8-1530-X-R | Aker晶振 | Crystal 44MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-48.000-12-50100-X1-R | Aker晶振 | Crystal 48MHz ±50ppm (Tol) ±100ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-27.000-8-1520-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-26.000-10-50100-X1-R | Aker晶振 | Crystal 26MHz ±50ppm (Tol) ±100ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-18.432-8-1530-X-R | Aker晶振 | Crystal 18.432MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-31.250-12-1520-R | Aker晶振 | Crystal 31.25MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-22.1184-12-1520-R | Aker晶振 | Crystal 22.1184MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-36.000-10-1520-R | Aker晶振 | Crystal 36MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-44.000-8-1520-R | Aker晶振 | Crystal 44MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-28.63636-8-1530-X-R | Aker晶振 | Crystal 28.63636MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-10.000-8-1530-X-R | Aker晶振 | Crystal 10MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 200Ohm Automotive 4-Pin SMD T/R |
| C3E-13.560-12-1530-X-R | Aker晶振 | Crystal 13.56MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-32.000-10-50100-X1-R | Aker晶振 | Crystal 32MHz ±50ppm (Tol) ±100ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-19.6608-8-1530-X-R | Aker晶振 | Crystal 19.6608MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-16.000-10-50100-X1-R | Aker晶振 | Crystal 16MHz ±50ppm (Tol) ±100ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-50.000-8-1530-X-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-26.000-8-50100-X1-R | Aker晶振 | Crystal 26MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-19.200-8-1520-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-48.000-8-1520-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-16.000-10-1520-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-24.576-12-1530-X-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-38.400-10-1520-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 50Ohm Automotive 4-Pin SMD T/R |
| C3E-16.384-10-1530-X-R | Aker晶振 | Crystal 16.384MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C3E-10.000-8-1520-R | Aker晶振 | Crystal 10MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 200Ohm Automotive 4-Pin SMD T/R |
| C3E-24.000-12-1520-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
