首頁進口晶振 Crystek晶振C3290-64.000,7050mm,Crystek低相位噪聲晶振

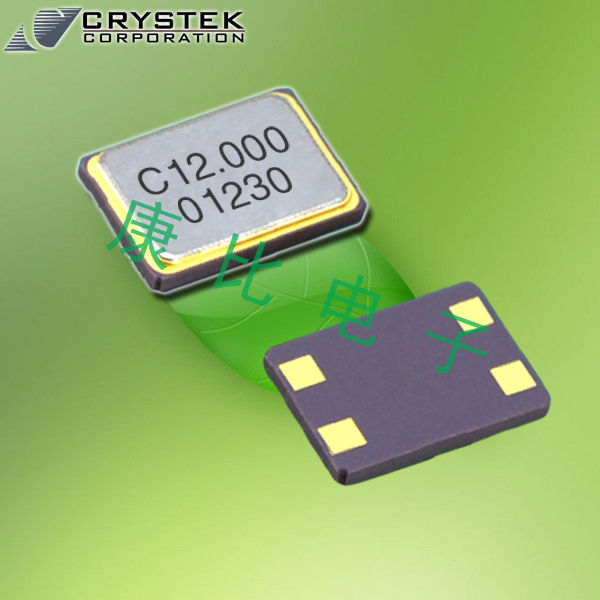

C3290-64.000,7050mm,Crystek低相位噪聲晶振

產品型號：16027103
頻率：64.000MHz
尺寸：7.0x5.0mm
產品介紹：C3290-64.000,7050mm,Crystek低相位噪聲晶振,高性能晶振，美國Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3290-64.000，頻率：64MHz，頻率穩定性：10...

C3290-64.000,7050mm,Crystek低相位噪聲晶振,高性能晶振，美國Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3290-64.000，頻率：64MHz，頻率穩定性：±100ppm，工作溫度范圍：0℃至+70℃，工作電壓為：5.0V，小體積晶振尺寸：7.0x5.0x1.8mm封裝，四腳貼片晶振，石英晶振，時鐘振蕩器，HCMOS輸出晶振，石英晶體振蕩器，具有超小型，輕薄型，高性能，低抖動，低相位噪聲等特點。應用范圍：數字視頻晶振，存儲區域網絡，寬帶接入晶振，以太網晶振、千兆以太網等應用。

Crystek晶振型號C32xx系列是一個1.544MHz到100.000MHz的HCMOS時鐘振蕩器，工作電壓5.0V。該振蕩器利用基本或高Q第三泛音晶體設計，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

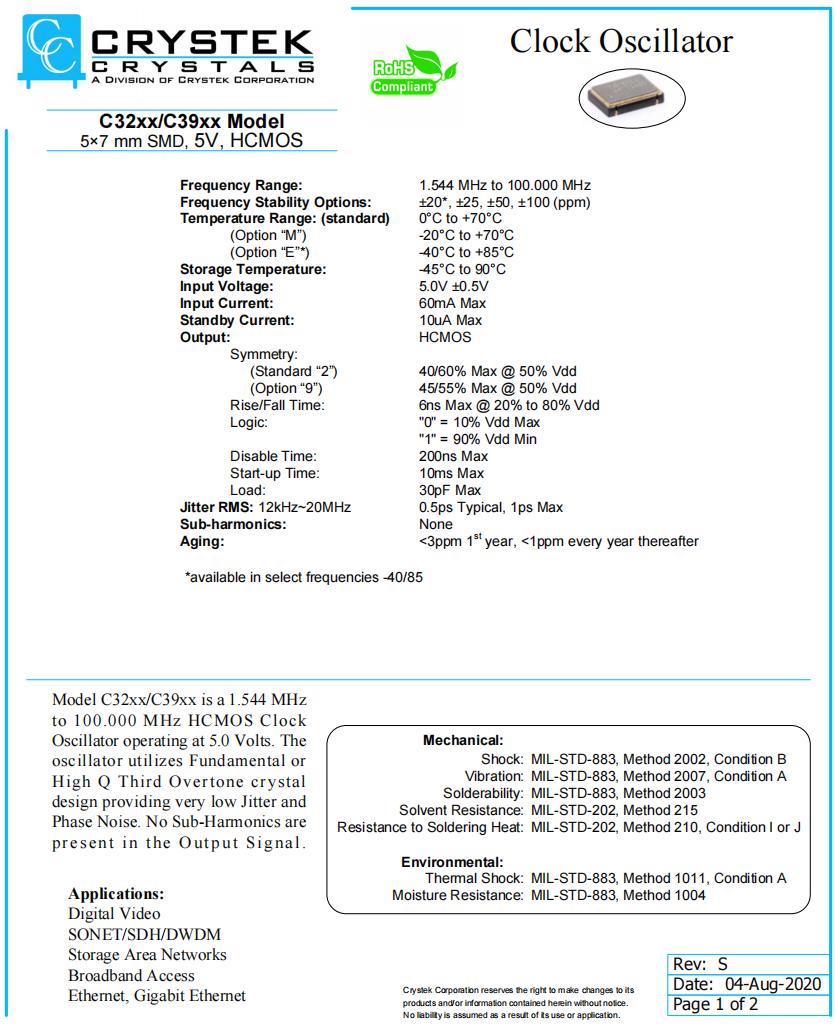

C3290-64.000,7050mm,Crystek低相位噪聲晶振,高性能晶振,參數表

Frequency Range:	64 MHz
Frequency Stability Options:	±20*, ±25, ±50, ±100 (ppm)
Temperature Range: (standard)	0°C to +70°C
(Option “M”)	-20°C to +70°C
(Option “E”*)	-40°C to +85°C
Storage Temperature:	-45°C to 90°C
Input Voltage:	5.0V ±0.5V
Input Current:	60mA Max
Standby Current:	10uA Max
Output:	HCMOS
Symmetry:
(Standard “2”)	40/60% Max @ 50% Vdd
(Option “9”)	45/55% Max @ 50% Vdd
Rise/Fall Time:	6ns Max @ 20% to 80% Vdd
Logic:	"0" = 10% Vdd Max
	"1" = 90% Vdd Min
Disable Time:	200ns Max
Start-up Time:	10ms Max
Load:	30pF Max
Jitter RMS: 12kHz~20MHz	0.5ps Typical, 1ps Max
Sub-harmonics:	None
Aging:	<3ppm 1st year, <1ppm every year thereafter

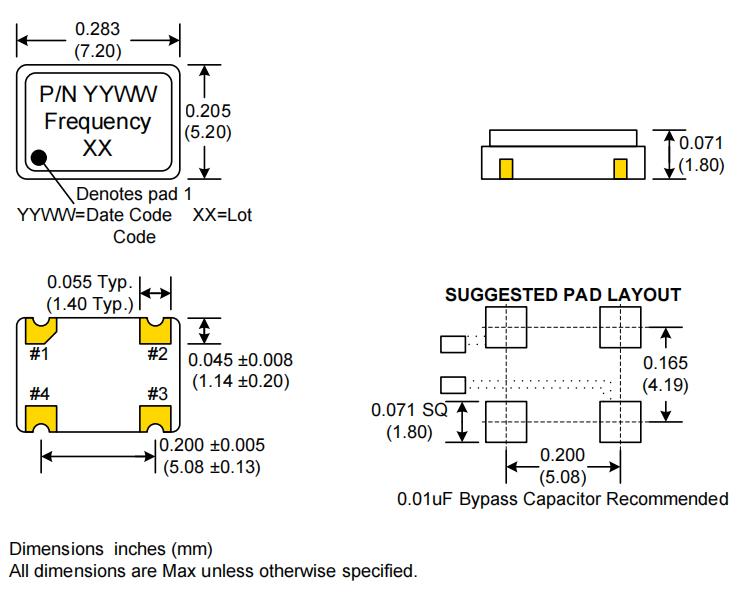

C3290-64.000,7050mm,Crystek低相位噪聲晶振,高性能晶振,尺寸圖

原廠代碼	晶振廠家	型號	頻率	頻率穩定度
C3290-1.544	Crystek晶振	C3290	1.544MHz	±100ppm
C3290-4.000	Crystek晶振	C3290	4MHz	±100ppm
C3290-40.000	Crystek晶振	C3290	40MHz	±100ppm
C3290-44.736	Crystek晶振	C3290	44.736MHz	±100ppm
C3290-45.000	Crystek晶振	C3290	45MHz	±100ppm
C3290-49.152	Crystek晶振	C3290	49.152MHz	±100ppm
C3290-50.000	Crystek晶振	C3290	50MHz	±100ppm
C3290-51.840	Crystek晶振	C3290	51.84MHz	±100ppm
C3290-6.176	Crystek晶振	C3290	6.176MHz	±100ppm
C3290-7.372800	Crystek晶振	C3290	7.3728MHz	±100ppm
C3290-8.000	Crystek晶振	C3290	8MHz	±100ppm
C3290-60.000	Crystek晶振	C3290	60MHz	±100ppm
C3290-64.000	Crystek晶振	C3290	64MHz	±100ppm
C3290-66.666600	Crystek晶振	C3290	66.6666MHz	±100ppm
C3290-75.000	Crystek晶振	C3290	75MHz	±100ppm
C3290-80.000	Crystek晶振	C3290	80MHz	±100ppm
CE3290-1.544	Crystek晶振	C3290	1.544MHz	±100ppm
CE3290-1.843200	Crystek晶振	C3290	1.8432MHz	±100ppm
CE3290-10.000	Crystek晶振	C3290	10MHz	±100ppm
CE3290-12.000	Crystek晶振	C3290	12MHz	±100ppm
CE3290-12.288	Crystek晶振	C3290	12.288MHz	±100ppm
CE3290-12.352	Crystek晶振	C3290	12.352MHz	±100ppm
CE3290-14.318180	Crystek晶振	C3290	14.31818MHz	±100ppm
CE3290-15.360	有源晶振	C3290	15.36MHz	±100ppm
CE3290-16.000	Crystek晶振	C3290	16MHz	±100ppm
CE3290-16.384	Crystek晶振	C3290	16.384MHz	±100ppm
CE3290-18.432	Crystek晶振	C3290	18.432MHz	±100ppm
CE3290-19.440	Crystek晶振	C3290	19.44MHz	±100ppm
CE3290-2.048	Crystek晶振	C3290	2.048MHz	±100ppm
CE3290-20.000	Crystek晶振	C3290	20MHz	±100ppm
CE3290-20.480	Crystek晶振	C3290	20.48MHz	±100ppm
CE3290-24.000	Crystek晶振	C3290	24MHz	±100ppm
CE3290-24.704	Crystek晶振	C3290	24.704MHz	±100ppm
CE3290-25.000	Crystek晶振	C3290	25MHz	±100ppm
CE3290-3.686400	Crystek晶振	C3290	3.6864MHz	±100ppm
CE3290-30.000	Crystek晶振	C3290	30MHz	±100ppm
CE3290-32.000	Crystek晶振	C3290	32MHz	±100ppm
CE3290-32.768	Crystek晶振	C3290	32.768MHz	±100ppm
CE3290-33.000	Crystek晶振	C3290	33MHz	±100ppm
CE3290-33.333	Crystek晶振	C3290	33.333MHz	±100ppm
CE3290-35.000	Crystek晶振	C3290	35MHz	±100ppm
CE3290-4.000	Crystek晶振	C3290	4MHz	±100ppm
CE3290-40.000	Crystek晶振	C3290	40MHz	±100ppm
CE3290-6.176	Crystek晶振	C3290	6.176MHz	±100ppm
CE3290-7.372800	Crystek晶振	C3290	7.3728MHz	±100ppm
CE3290-8.000	Crystek晶振	C3290	8MHz	±100ppm
CE3290-44.736	Crystek晶振	C3290	44.736MHz	±100ppm
CE3290-45.000	Crystek晶振	C3290	45MHz	±100ppm
CE3290-49.152	Crystek晶振	C3290	49.152MHz	±100ppm
CE3290-50.000	Crystek晶振	C3290	50MHz	±100ppm
CE3290-51.840	Crystek晶振	C3290	51.84MHz	±100ppm
CE3290-60.000	Crystek晶振	C3290	60MHz	±100ppm
CE3290-64.000	Crystek晶振	C3290	64MHz	±100ppm
CE3290-66.666600	Crystek晶振	C3290	66.6666MHz	±100ppm
CE3290-75.000	Crystek晶振	C3290	75MHz	±100ppm
CE3290-80.000	Crystek晶振	C3290	80MHz	±100ppm
C3290-100.000	Crystek晶振	C3290	100MHz	±100ppm
C3290-106.2500	Crystek晶振	C3290	106.25MHz	±100ppm
CE3290-100.000	Crystek晶振	C3290	100MHz	±100ppm
CE3290-106.2500	Crystek晶振	C3290	106.25MHz	±100ppm
