首頁進口晶振 NDK晶振NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃

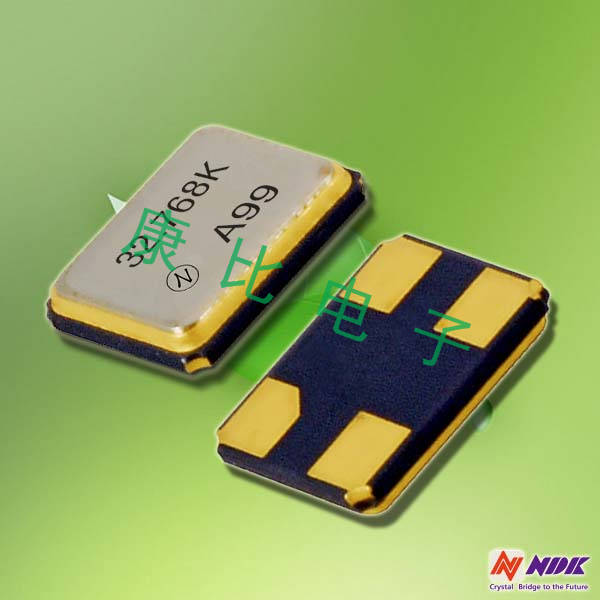

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃

產品型號：47469572
頻率：16~80MHz
尺寸：2.5x2.0mm
產品介紹：NX2520SA-16MHZ-STD-CSW-58pF252016MHz-40℃~+85℃無線設備晶振，日本電波工業株式NDK晶振，進口晶振型號NX2520SA，編碼NX2520SA-16MHZ-STD-CSW-5，是一款小體積晶...

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃無線設備晶振，日本電波工業株式NDK晶振，進口晶振型號NX2520SA，編碼NX2520SA-16MHZ-STD-CSW-5，是一款小體積晶振尺寸2.5x2.0mm四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，頻率范圍：16MHz~80MHz，具有超小型，輕薄型，優異的耐環境性能，耐熱和耐沖擊性，回流溫度曲線（可用于無鉛焊接)，應用于：電信設備，短程無線設備，消費設備功能，適用于短程無線設備如藍牙、Wi-Fi，以及參考時鐘源如智能手機和平板電腦。

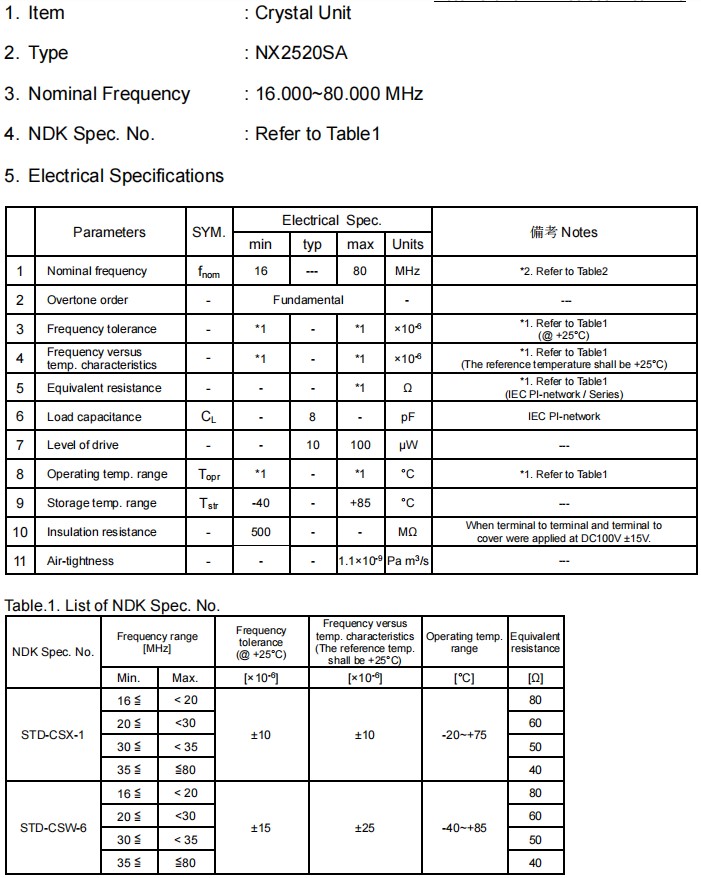

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃無線設備晶振，參數圖

Item	Model	NX2520SA
Standard		Standard		Optional
Nominal Frequency (MHz)		16 ≤ F ≤ 80	16 ≤ F ≤ 54	16 ≤ F ≤ 80
Overtone Order		Fundamental
Frequency Tolerance		±15 × 10−6	±10 × 10–6	±8×10-6 (16 ≤ F ≤ 40MHz) ±12×10-6 (40 < F ≤ 80MHz)
(25 ±3 °C)
Frequency versus Temperature		±25 × 10−6	±10 × 10–6	±10 × 10–6
Characteristics				(Temp extended case, *1)
(with reference to +25 °C)
Operating Temperature		−40 to +85	–20 to +75	–20 to +75
Range(°C)				(–40 to +85 °C Extended)
Storage Temperature Range (°C)		−40 to +85		−40 to +125
Equivalent Series Resistance		Refer to *2	Refer to *3	Refer to *2
Level of Drive (μW)		10 (Max. 100)		10 (Max. 200) *1
Load Capacitance (pF)		8		6 to 32
Frequency Aging (+25 °C)		---		Max. ±3×10-6 / year *1
Specifications Number		STD-CSW-6	STD-CSX-1	Refer to *4

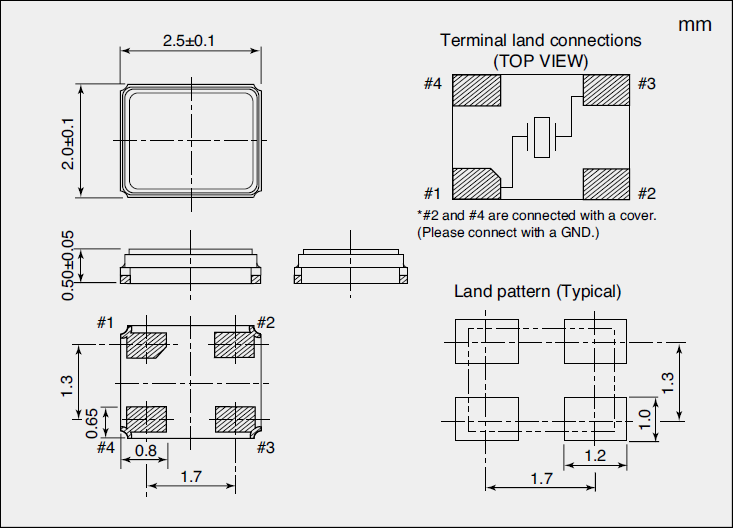

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃無線設備晶振，尺寸圖

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃無線設備晶振
安裝條件：
請確保在以下條件下使用該產品。否則，可能會導致產品的特性惡化或破壞

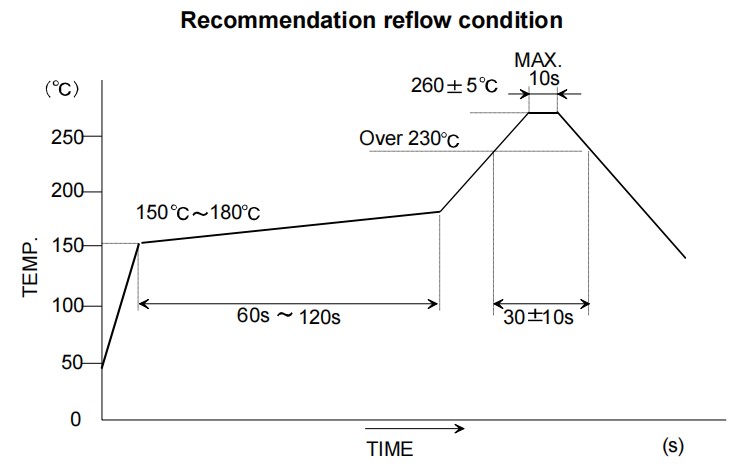

(1)回流焊耐熱性
峰值溫度：265℃，10sec.
加熱： 230℃或更高，40秒
預熱：150~180℃，120秒
回流通過時間：2次
(2)手動焊接耐熱性
在終端電極上按壓400°C的焊鐵4秒鐘（兩次）

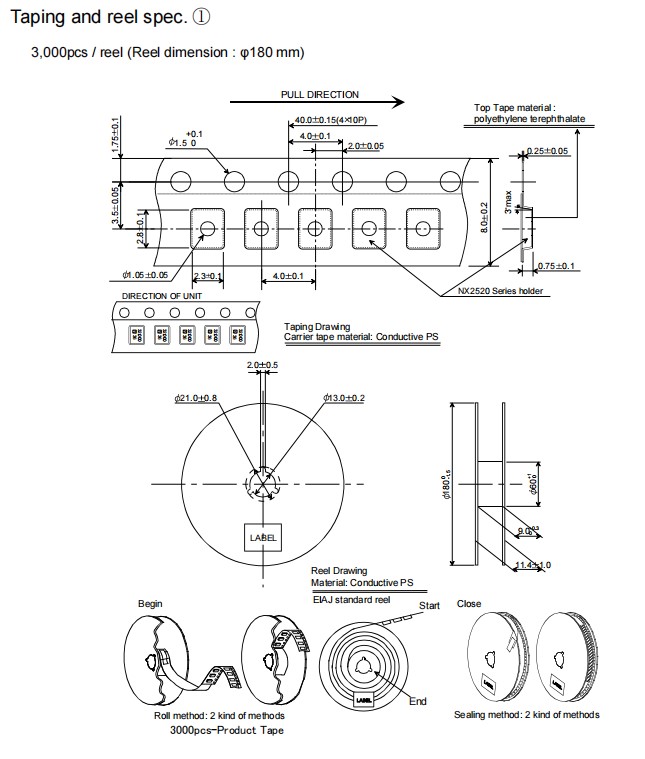

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃無線設備晶振，膠帶和卷軸規格

石英晶振	品牌	型號	頻率	頻率穩定度	包裝/封裝
NX2520SA-16MHZ-STD-CSW-4	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ	NDK晶振	NX2520SA	16MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ-B8	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-48.000000MHZ	NDK晶振	NX2520SA	48MHz	±10ppm	4-SMD, No Lead
NX2520SA-16MHZ-EXS00A-CS05116	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-25.000M-STD-CSW-5	NDK晶振	NX2520SA	25MHz	±25ppm	4-SMD, No Lead
NX2520SA-26MHZ-STD-CSX-1	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-30.000000MHZ	NDK晶振	NX2520SA	30MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.576000MHZ	NDK晶振	NX2520SA	24.576MHz	±10ppm	4-SMD, No Lead
NX2520SA-20.000000MHZ	NDK晶振	NX2520SA	20MHz	±10ppm	4-SMD, No Lead
NX2520SA-32.000000MHZ	NDK晶振	NX2520SA	32MHz	±10ppm	4-SMD, No Lead
NX2520SA-44.000000MHZ	NDK晶振	NX2520SA	44MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ-B9	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
EXS00A-CS05400	NDK晶振	NX2520SA	19.2MHz	±30ppm	4-SMD, No Lead
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	16MHz	±25ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ-W1	NDK晶振	NX2520SA	16MHz	±20ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W2	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W3	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-26MHZ-EXS00A-CS05497	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
