- 產品型號：92980285
- 頻率：32.768KHZ
- 尺寸：8.0*3.8mm
- 產品介紹：CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal，尺寸8038mm,頻率為32.768KHZ，瑞士微晶晶振，瑞士進口晶振，MicroCrystal，32.768K音叉晶振...
-

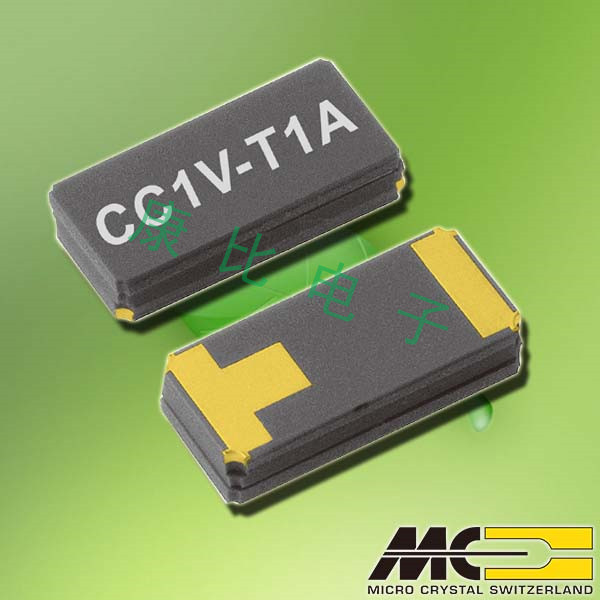

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal
.jpg)
.jpg)
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal，尺寸8038mm,頻率為32.768KHZ，瑞士微晶晶振，瑞士進口晶振，MicroCrystal，32.768K音叉晶振，SMD晶振，陶瓷晶振，計時器晶振，兩腳貼片晶振，無源晶振，水晶振動子，8038mm貼片晶振，32.768KHZ無源晶體，無源貼片晶振，輕薄型晶振，環保晶振，計量專用晶振，工業應用晶振，汽車應用晶振，醫療保健專用晶振，高性能晶振，高質量晶振，低損耗晶振。
CC1V-T1A是一種低頻SMT石英晶體單元包含一個音叉石英晶體諧振器。它在在帶有陶瓷蓋的密封陶瓷封裝中的真空。比較適合用于計量，工業的，汽車，醫療保健，惡劣的環境，消費類電子產品等領域.CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal.
.jpg)

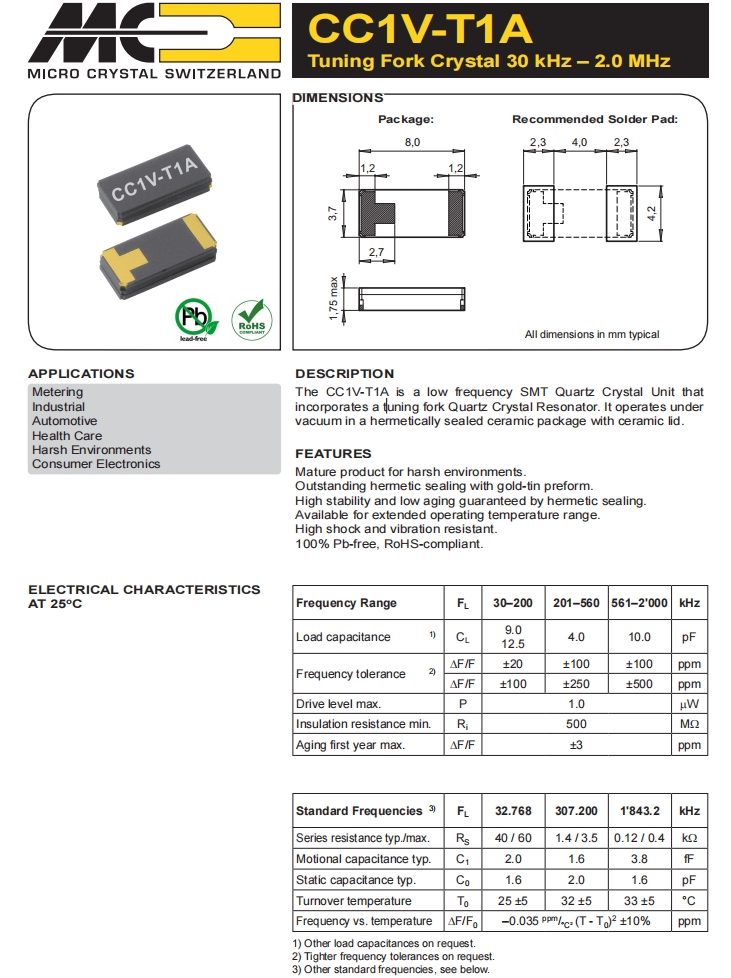

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal 參數表
| Frequency Range | FL | 30–200 | 201–560 | 561–2'000 | kHz | ||||||||
| Load capacitance 1) | CL |
9.0 12.5 |
4.0 | 10.0 | pF | ||||||||
| Frequency tolerance 2) | ΔF/F | ±20 | ±100 | ±100 | ppm | ||||||||
| ΔF/F | ±100 | ±250 | ±500 | ppm | |||||||||
| Drive level max. | P | 1.0 | μW | ||||||||||
| Insulation resistance min. | Ri | 500 | MΩ | ||||||||||
| Aging first year max. | ΔF/F | ±3 | ppm | ||||||||||
| Standard Frequencies 3) | FL | 32.768 | 307.200 | 1'843.2 | kHz | |||||||
| Series resistance typ./max. | RS | 40 / 60 | 1.4 / 3.5 | 0.12 / 0.4 | kΩ | |||||||
| Motional capacitance typ. | C1 | 2.0 | 1.6 | 3.8 | fF | |||||||
| Static capacitance typ. | C0 | 1.6 | 2.0 | 1.6 | pF | |||||||
| Turnover temperature | T0 | 25 ±5 | 32 ±5 | 33 ±5 | °C | |||||||
| Frequency vs. temperature | ΔF/F0 | –0.035 ppm/°C² (T - T0)2 ±10% | ppm | |||||||||
.jpg)

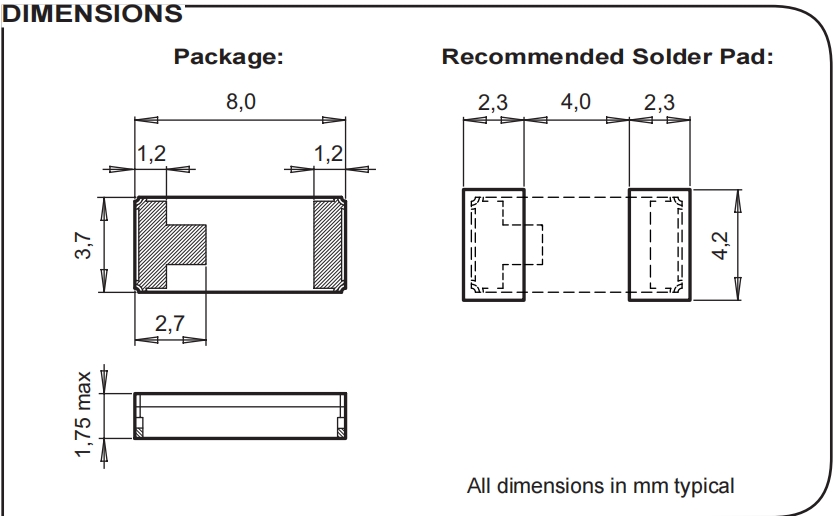

CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal 尺寸圖
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC/汽車應用6G晶振/MicroCrystal
32.768KHZ產品特性
適用于惡劣環境的成熟產品。
金錫預制棒的出色密封性。
高穩定性和低老化通過密封保證。
適用于擴展的工作溫度范圍。
抗沖擊和振動能力強。
100%無鉛，符合RoHS標準。
適用于惡劣環境的成熟產品。
金錫預制棒的出色密封性。
高穩定性和低老化通過密封保證。
適用于擴展的工作溫度范圍。
抗沖擊和振動能力強。
100%無鉛，符合RoHS標準。
| 制造商零件編號 | 制造商 | 描述 |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| 202684-MC03 | Micro晶振 | 晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| 202273-EA00 | Micro晶振 | 標準時鐘振蕩器 128MHz 20ppm -55C +85C |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro晶振 | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro晶振 | 音叉晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro晶振 | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro晶振 | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro晶振 | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro晶振 | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro晶振 | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro晶振 | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C |
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro晶振 | 標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro晶振 | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C |
