首頁進口晶振微晶晶振瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC

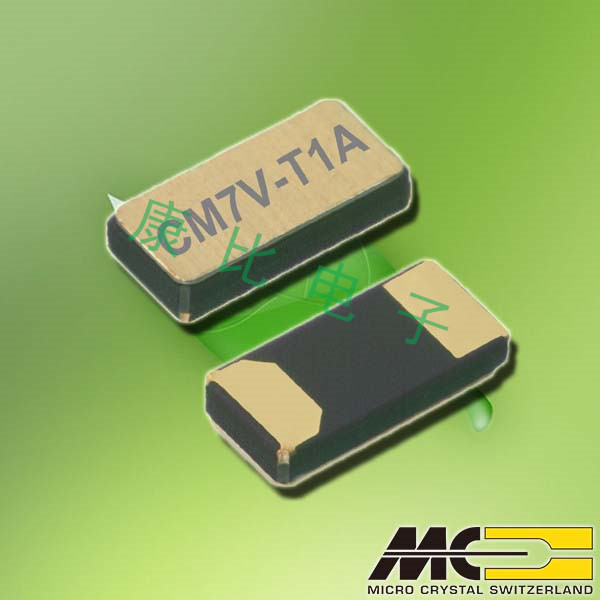

瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC

產品型號：33869164
頻率：32.768KHZ
尺寸：3.2*1.5mm
產品介紹：瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC，尺寸3215mm,頻率為32.768KHZ，瑞士無源晶振，Microcrystal，石英水晶振動子，石英晶體，石...

瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC，尺寸3215mm,頻率為32.768KHZ，瑞士無源晶振，Microcrystal，石英水晶振動子，石英晶體，石英貼片晶振，音叉晶體，3215mm石英晶振，兩腳貼片晶振，32.768KHZ貼片晶振，32.768KHZ石英晶體，SMD石英晶體，輕薄型晶體，綠色環保晶振，金屬面貼片晶振，SMD晶振，計量專用晶振，物聯網晶振，可穿戴設備晶振，便攜式設備晶振，高性能晶振，高質量晶振，低損耗晶振，低功耗晶振。

CM7V-T1A是一款低頻SMT石英晶體單元包含一個音叉石英晶體諧振器。它在在帶有金屬蓋的密封陶瓷封裝中的真空。產品適合用于物聯網，計量，工業的，汽車，醫療保健，可穿戴設備、便攜式設備等領域。瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC.

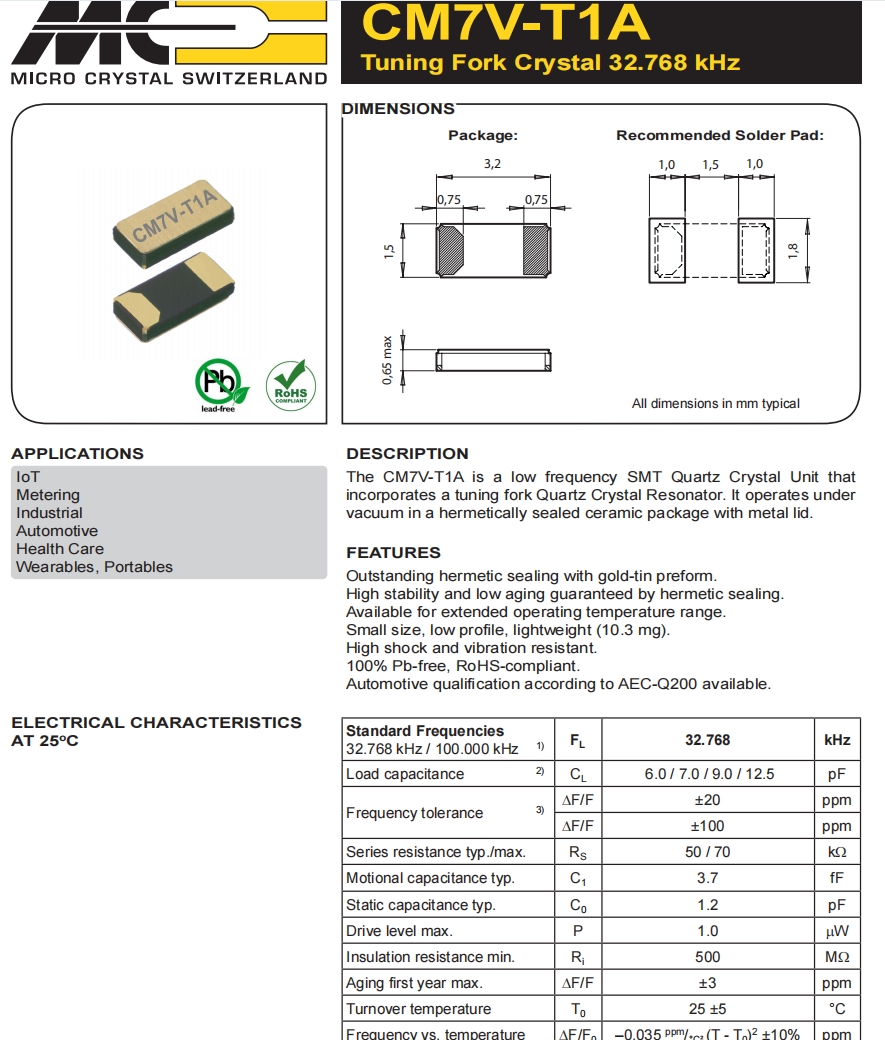

瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC 參數表

Standard Frequencies
32.768 kHz / 100.000 kHz

32.768

kHz

Load capacitance 2)

6.0 / 7.0 / 9.0 / 12.5

Frequency tolerance 3)

ΔF/F

±20

ppm

ΔF/F

±100

ppm

Series resistance typ./max.

50 / 70

kΩ

Motional capacitance typ.

3.7

Static capacitance typ.

1.2

Drive level max.

1.0

μW

Insulation resistance min.

500

MΩ

Aging first year max.

ΔF/F

±3

ppm

Turnover temperature

25 ±5

°C

Frequency vs. temperature

ΔF/F0

–0.035 ppm/°C² (T - T0)2 ±10%

ppm

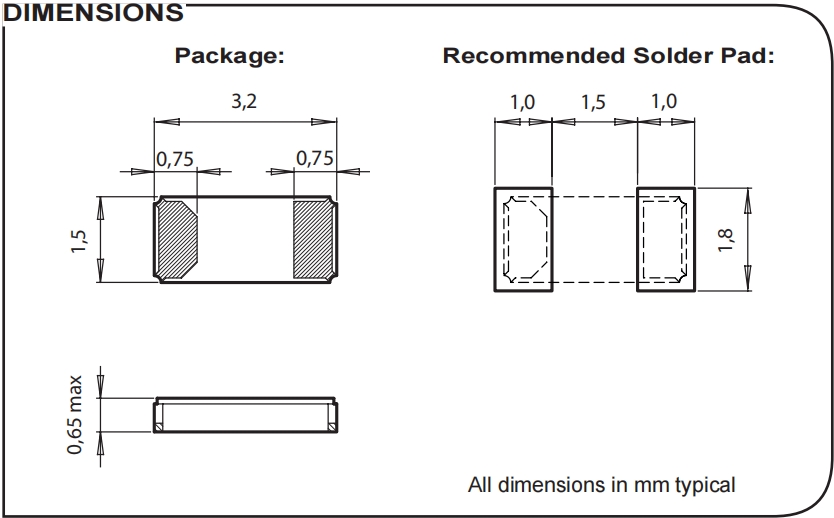

瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC 尺寸圖

瑞士微晶3215晶振,計量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC

SMD晶振產品特性
金錫預制棒的出色密封性。
高穩定性和低老化通過密封保證。
適用于擴展的工作溫度范圍。
體積小、體積小、重量輕（10.3毫克）。
抗沖擊和振動能力強。
100%無鉛，符合RoHS標準。
可根據AEC-Q200進行汽車鑒定

制造商零件編號	制造商	描述
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	Micro晶振	晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC	Micro晶振	晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro晶振	晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768k-6pF-20PPM-TB-QA	Micro晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au	Micro晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
OV-7605-C8-32.768kHz-20PPM-TA-QC	Micro晶振	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC	Micro晶振	晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C
OM-7604-C7-32.768kHz-20PPM-TB-QC	Micro晶振	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C
CC4V-T1A-32.768k-9pF-20PPM-TC-QA	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au	Micro晶振	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
OV-7604-C7-32.768k-10PPM-TB-QA	Micro晶振	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768k-20PPM-TA-QA	Micro晶振	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro晶振	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC	Micro晶振	晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC	Micro晶振	晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC	Micro晶振	晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC	Micro晶振	晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC	Micro微晶晶振	晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC	Micro晶振	晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC	Micro晶振	晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC	Micro晶振	晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC	Micro晶振	晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
CC4V-T1A-32.768k-9pF-20PPM-TA-QA	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au	Micro晶振	晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC	Micro晶振	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-10PPM-TA-QC	Micro晶振	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C
OV-0100-C7-100.000kHz-50PPM-TA-QC	Micro晶振	標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC	Micro晶振	晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC	Micro晶振	晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC	Micro晶振	晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro晶振	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC	Micro晶振	晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC	Micro晶振	晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
200125-PL08	Micro晶振	晶體 32.768kHz 7pF +/-10 PPM -40C +85C
OM-7605-C8-20PPM-TA-QA	Micro晶振	標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA	Micro晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3	Micro晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
