- 產品型號：13188742
- 頻率：32.768KHZ
- 尺寸：1.6*1.0mm
- 產品介紹：6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，尺寸1610mm,頻率為32.768KHZ，MicroCrystal，瑞士進口晶振，進口貼片晶振，SMD晶振，石...
-
6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC
航欄(16).jpg)
.jpg)
6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，尺寸1610mm,頻率為32.768KHZ，MicroCrystal，瑞士進口晶振，進口貼片晶振，SMD晶振，石英晶振，兩腳貼片晶振，無源貼片晶振，水晶振動子，1610mm貼片晶振，石英貼片晶振，SMD晶體諧振器，石英晶體諧振器，32.768K音叉晶振，無鉛環保晶振，可穿戴設備晶振，醫療保健晶振，便攜式設備晶振，計時器晶振，32.768KHZ無源晶體，輕薄型晶振，工業應用晶振，汽車應用晶振，醫療保健專用晶振，高性能晶振，高精度晶振，低功耗晶振，低損耗晶振。
CM9V-T1A是一款低頻SMD石英晶體單元包含一個音叉石英晶體諧振器。它在在帶有金屬蓋的密封陶瓷封裝中的真空。適合用于物聯網，計量，工業的，汽車，醫療保健，可穿戴設備、便攜式設備等領域.6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC.
.jpg)

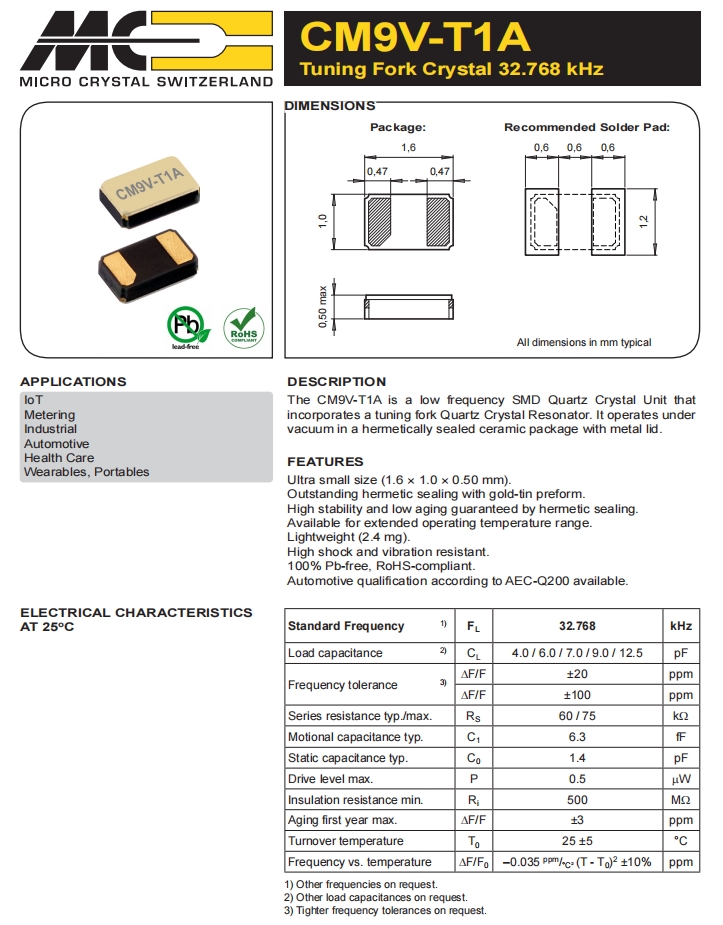

6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 參數表
| Standard Frequency 1) | FL | 32.768 | kHz | ||||||||||||||||
| Load capacitance 2) | CL | 4.0 / 6.0 / 7.0 / 9.0 / 12.5 | pF | ||||||||||||||||
| Frequency tolerance 3) | ΔF/F | ±20 | ppm | ||||||||||||||||
| ΔF/F | ±100 | ppm | |||||||||||||||||
| Series resistance typ./max. | RS | 60 / 75 | kΩ | ||||||||||||||||
| Motional capacitance typ. | C1 | 6.3 | fF | ||||||||||||||||
| Static capacitance typ. | C0 | 1.4 | pF | ||||||||||||||||
| Drive level max. | P | 0.5 | μW | ||||||||||||||||
| Insulation resistance min. | Ri | 500 | MΩ | ||||||||||||||||
| Aging first year max. | ΔF/F | ±3 | ppm | ||||||||||||||||
| Turnover temperature | T0 | 25 ±5 | °C | ||||||||||||||||
| Frequency vs. temperature | ΔF/F0 | –0.035 ppm/°C² (T - T0)2 ±10% | ppm | ||||||||||||||||
.jpg)
6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 尺寸圖
6G物聯網晶振,Micro微晶音叉晶體,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC
晶振產品特性
超小型（1.6×1.0×0.50 mm）。
金錫預制棒的出色密封性。
高穩定性和低老化通過密封保證。
適用于擴展的工作溫度范圍。
重量輕（2.4毫克）。
抗沖擊和振動能力強。
100%無鉛，符合RoHS標準。
可根據AEC-Q200進行汽車鑒定。
金錫預制棒的出色密封性。
高穩定性和低老化通過密封保證。
適用于擴展的工作溫度范圍。
重量輕（2.4毫克）。
抗沖擊和振動能力強。
100%無鉛，符合RoHS標準。
可根據AEC-Q200進行汽車鑒定。
| 制造商零件編號 | 制造商 | 描述 |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| 202684-MC03 | Micro晶振 | 晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| 202273-EA00 | Micro晶振 | 標準時鐘振蕩器 128MHz 20ppm -55C +85C |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro晶振 | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C |
