首頁進口晶振 AXTAL晶振AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌

產品型號：2209395
頻率：16.000MHz
尺寸：5.0x3.2mm
產品介紹：AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪聲晶振，德國進口晶振，AXTAL晶振，型號：AXLE5032LN，編碼為：AXLE5032LN-V-33-C-05-4F...

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪聲晶振，德國進口晶振，AXTAL晶振，型號：AXLE5032LN，編碼為：AXLE5032LN-V-33-C-05-4F-16.000有源晶振，電壓：3.3V，頻率穩定性：±0.5ppm，工作溫度范圍：-40℃至+85℃，頻率為：16.000MHz，小體積晶振尺寸：5.0x3.2mm，TCXO溫補晶振，石英晶振，8墊腳貼片晶振，有源晶體，石英晶體振蕩器。具有超小型，輕薄型，高穩定性，低功耗，低相位噪聲，低電壓等特點。被廣泛應用于：移動通訊設備晶振，無線藍牙晶振，物聯網晶振，航空電子晶振，汽車電子晶振，導航儀等應用。

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪聲晶振,參數表

Parameter	min.	typ.	max.	Unit	Condition
Frequency range	16			MHz
Nominal frequencies	10, 12.8, 13, 16, 16.384,20,25, 26, 40, 50			MHz	Other frequencies
Nominal frequencies	10, 12.8, 13, 16, 16.384,20,25, 26, 40, 50			MHz	on request
Frequency stability
Initial tolerance @ 25°C			±1	ppm	@ VCnom Note 2
vs. operating temperature range	± 0.2 to ± 2.0			ppm	Option 4&5 (Tables 1~3)
vs. supply voltage variation			±0.05	ppm	VS ±5 %
vs. load change			±0.05	ppm	Load ±10 %
Long term (aging) 1st year			±1	ppm	@+40°C Note 3
Frequency adjustment range
Electronic Frequency Control (EFC)	±5		±10	ppm	Option 1 = “V”
EFC voltage VC	0.5	1.5	2.5	V
EFC slope (Df / DVC)	Positive
EFC input impedance	100			kΩ
RF output
Signal waveform	Clipped Sine Wave				Option 3 = “C”
Signal waveform	HCMOS				Option 3 = “H”
Load	10 kΩ \|\| 10 pF 12 pF (15 pF max.)				Option 3 = “C”
Load	10 kΩ \|\| 10 pF 12 pF (15 pF max.)				Option 3 = “H”
Amplitude (peak‐peak)	0.8			V	Option 3 = “C”
VOL			0.4	V	Option 3 = “H”
VOH	2.4			V
Duty cycle	45		55	%
Rise/fall time			6	ns
Phase noise @10.000MHz with EFC‐function(Option 1=“V”) without EFC‐function(Option 1=“_”)		‐120* ‐140* ‐153*	‐125 ‐145 ‐155**	dBc/Hz	@ 100Hz @ 1kHz @ 10 kHz~100kHz
Enable Disable funtion
Supply voltage VS (Note 4)	2.375	2.5	2.625	V	Option 2 = “25”
Supply voltage VS (Note 4)	3.135	3.3	3.465	V	Option 2 = “33”
Current consumption			3	mA	Option 3 = “C”
Current consumption			8	mA	Option 3 = “H”
Enclosure (see drawing) (LxWxH)		5.0x3.2x1.5		mm
Weight			3	g
Packing	Tape & Reel				IEC 60286-3

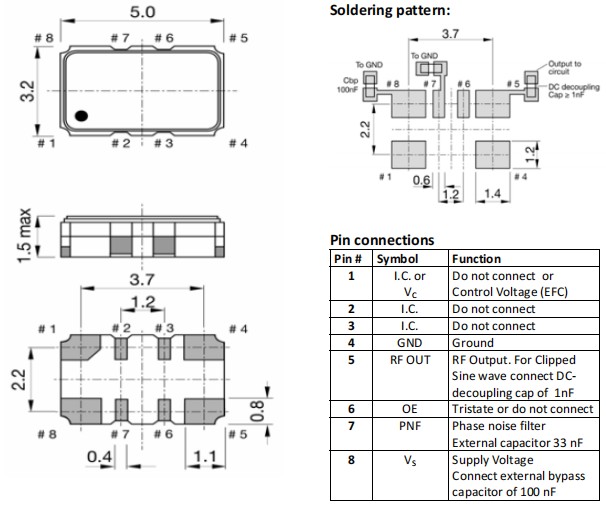

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪聲晶振,尺寸圖
