- 產品型號：94859665
- 頻率：19.680MHz
- 尺寸：5.0x3.2mm
- 產品介紹：Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器,CSX3-BE3-12-24.000,6G電信晶振，美國進口晶振，CRYSTEK瑞斯克晶振，型號CSX3系列，編碼為：CSX3-AB1-18-19....
-

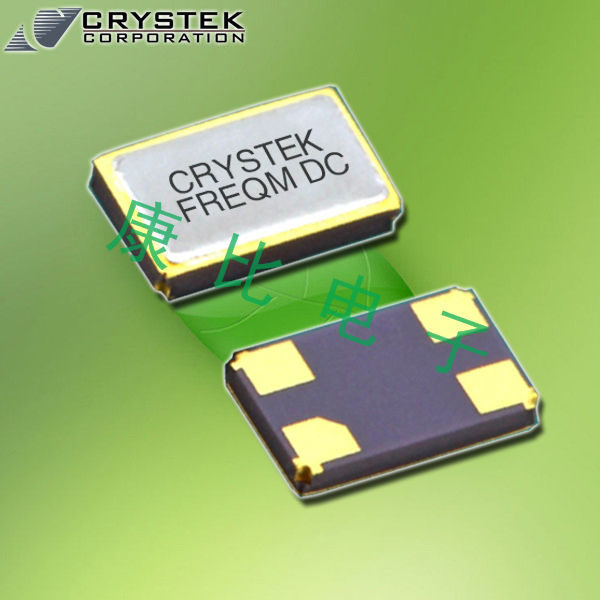

Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器
.jpg)
.jpg)
Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器,CSX3-BE3-12-24.000,6G電信晶振，美國進口晶振，CRYSTEK瑞斯克晶振，型號CSX3系列，編碼為：CSX3-AB1-18-19.680，頻率為：19.680 MHz，小體積晶振尺寸：5.0x3.2mm，四腳貼片晶振，無源晶振，石英晶體諧振器，工作溫度范圍:-20℃至+70℃，具有超小型，輕薄型特點。應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，儀器儀表設備，安防設備，醫療設備，導航儀，數碼電子等應用。
.jpg)

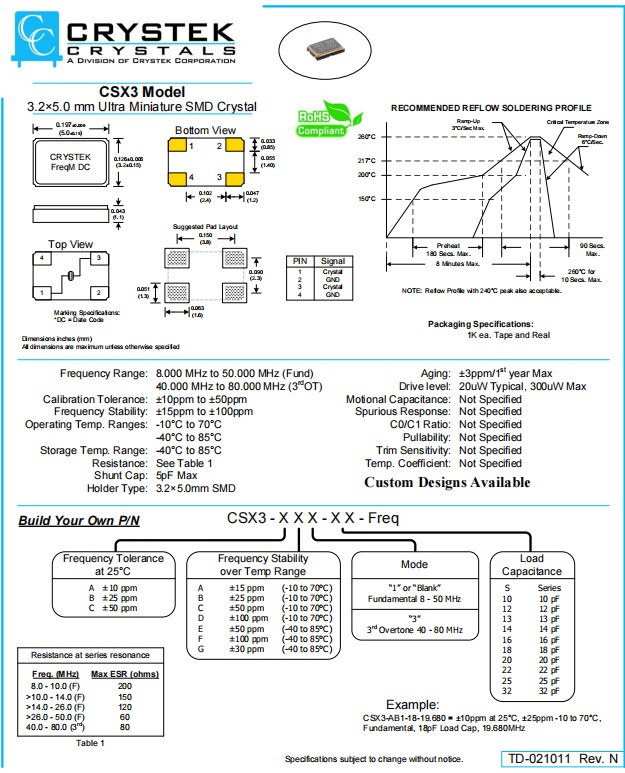

Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器,CSX3-BE3-12-24.000,6G電信晶振，參數表
| Frequency Range: | 8.000 MHz to 50.000 MHz (Fund) |
| 40.000 MHz to 80.000 MHz (3rdOT) | |
| Calibration Tolerance: | ±10ppm to ±50ppm |
| Frequency Stability: | ±15ppm to ±100ppm |
| Operating Temp. Ranges: | -10°C to 70°C |
| -40°C to 85°C | |
| Storage Temp. Range: | -40°C to 85°C |
| Resistance: | See Table 1 |
| Shunt Cap: | 5pF Max |
| Holder Type: | 3.2×5.0mm SMD |
| Aging: | ±3ppm/1st year Max |
| Drive level: | 20uW Typical, 300uW Max |
| Motional Capacitance: | Not Specified |
| Spurious Response: | Not Specified |
| C0/C1 Ratio: | Not Specified |
| Pullability: | Not Specified |
| Trim Sensitivity: | Not Specified |
| Temp. Coefficient: |
Not Specified |
.jpg)

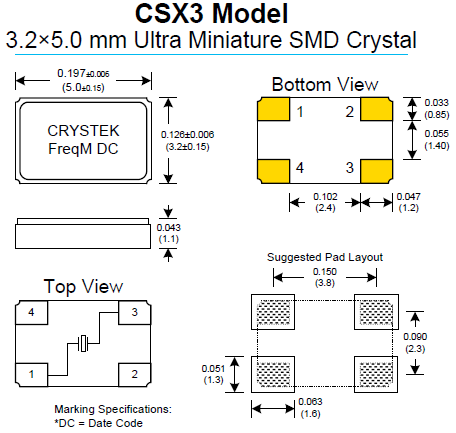

Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器,CSX3-BE3-12-24.000,6G電信晶振，尺寸圖
Crystek進口晶振,CSX3-AB1-18-19.680,石英晶體諧振器,CSX3-BE3-12-24.000,6G電信晶振
5032mm體積的貼片晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接，產品無鉛對應，為無鉛產品.
| 原廠代碼 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 |
| CE3391-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±25ppm |
| C3391-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm |
| C3390-1.544 | Crystek晶振 | C33 | XO (Standard) | 1.544MHz | ±100ppm |
| C3390-1.843200 | Crystek晶振 | C33 | XO (Standard) | 1.8432MHz | ±100ppm |
| C3390-10.000 | Crystek晶振 | C33 | XO (Standard) | 10MHz | ±100ppm |
| C3390-12.000 | Crystek晶振 | C33 | XO (Standard) | 12MHz | ±100ppm |
| C3390-12.288 | Crystek晶振 | C33 | XO (Standard) | 12.288MHz | ±100ppm |
| C3390-12.352 | Crystek晶振 | C33 | XO (Standard) | 12.352MHz | ±100ppm |
| C3390-14.318180 | Crystek晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm |
| C3390-15.360 | Crystek晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm |
| C3390-16.000 | Crystek晶振 | C33 | XO (Standard) | 16MHz | ±100ppm |
| C3390-16.384 | Crystek晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm |
| C3390-18.432 | Crystek晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm |
| C3390-19.440 | Crystek晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm |
| C3390-2.048 | Crystek晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm |
| C3390-20.000 | Crystek晶振 | C33 | XO (Standard) | 20MHz | ±100ppm |
| C3390-20.480 | Crystek晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm |
| C3390-24.000 | Crystek晶振 | C33 | XO (Standard) | 24MHz | ±100ppm |
| C3390-24.576 | Crystek晶振 | C33 | XO (Standard) | 24.576MHz | ±100ppm |
| C3390-24.704 | Crystek晶振 | C33 | XO (Standard) | 24.704MHz | ±100ppm |
| C3390-25.000 | Crystek晶振 | C33 | XO (Standard) | 25MHz | ±100ppm |
| C3390-3.686400 | Crystek晶振 | C33 | XO (Standard) | 3.6864MHz | ±100ppm |
| C3390-30.000 | Crystek晶振 | C33 | XO (Standard) | 30MHz | ±100ppm |
| C3390-32.000 | Crystek晶振 | C33 | XO (Standard) | 32MHz | ±100ppm |
| C3390-32.768 | Crystek晶振 | C33 | XO (Standard) | 32.768MHz | ±100ppm |
| C3390-33.000 | Crystek晶振 | C33 | XO (Standard) | 33MHz | ±100ppm |
| C3390-33.333 | Crystek晶振 | C33 | XO (Standard) | 33.333MHz | ±100ppm |
| C3390-34.368 | Crystek晶振 | C33 | XO (Standard) | 34.368MHz | ±100ppm |
| C3390-35.000 | Crystek晶振 | C33 | XO (Standard) | 35MHz | ±100ppm |
| C3390-35.328 | Crystek晶振 | C33 | XO (Standard) | 35.328MHz | ±100ppm |
| C3390-4.000 | Crystek晶振 | C33 | XO (Standard) | 4MHz | ±100ppm |
| C3390-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±100ppm |
| C3390-40.000 | Crystek晶振 | C33 | XO (Standard) | 40MHz | ±100ppm |
| C3390-44.736 | Crystek晶振 | C33 | XO (Standard) | 44.736MHz | ±100ppm |
| C3390-45.000 | Crystek晶振 | C33 | XO (Standard) | 45MHz | ±100ppm |
| C3390-49.152 | Crystek晶振 | C33 | XO (Standard) | 49.152MHz | ±100ppm |
| C3390-50.000 | Crystek晶振 | C33 | XO (Standard) | 50MHz | ±100ppm |
| C3390-51.840 | Crystek晶振 | C33 | XO (Standard) | 51.84MHz | ±100ppm |
| C3390-6.176 | Crystek晶振 | C33 | 石英晶振 | 6.176MHz | ±100ppm |
| C3390-7.372800 | Crystek晶振 | C33 | XO (Standard) | 7.3728MHz | ±100ppm |
| C3390-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±100ppm |
| C3390-8.064 | Crystek晶振 | C33 | XO (Standard) | 8.064MHz | ±100ppm |
| C3390-8.192 | Crystek晶振 | C33 | XO (Standard) | 8.192MHz | ±100ppm |
| C3392-1.544 | Crystek晶振 | C33 | XO (Standard) | 1.544MHz | ±50ppm |
| C3392-1.843200 | Crystek晶振 | C33 | XO (Standard) | 1.8432MHz | ±50ppm |
| C3392-10.000 | Crystek晶振 | C33 | XO (Standard) | 10MHz | ±50ppm |
| C3392-12.000 | Crystek晶振 | C33 | XO (Standard) | 12MHz | ±50ppm |
| C3392-12.288 | Crystek晶振 | C33 | XO (Standard) | 12.288MHz | ±50ppm |
| C3392-12.352 | Crystek晶振 | C33 | XO (Standard) | 12.352MHz | ±50ppm |
| C3392-14.318180 | Crystek晶振 | C33 | XO (Standard) | 14.31818MHz | ±50ppm |
| C3392-15.360 | Crystek晶振 | C33 | XO (Standard) | 15.36MHz | ±50ppm |
| C3392-16.0000 | Crystek晶振 | C33 | XO (Standard) | 16MHz | ±50ppm |
