- 產品型號：56280446
- 頻率：16.384 MHz
- 尺寸：5.0x3.2mm
- 產品介紹：IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振,LFXTAL059531REEL,6G網絡晶振，英國進口晶振，IQD伊克德晶振，型號CFPX-104，編碼為：LFXTAL059528RE...
-

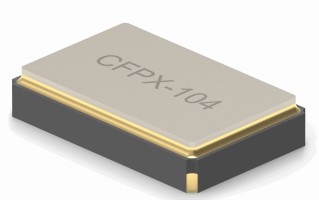

IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振
航欄(16).jpg)
.jpg)
IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振,LFXTAL059531REEL,6G網絡晶振，英國進口晶振，IQD伊克德晶振，型號CFPX-104，編碼為：LFXTAL059528REEL，頻率為：16.384 MHz，小體積晶振尺寸：5.0x3.2mm，標準的5x3.2mm SMD晶體與四個墊片。陶瓷包裝與一個接縫密封的金屬蓋。四腳貼片晶振，無源晶振，石英晶體諧振器，較寬的工作溫度范圍，具有超小型，輕薄型，耐熱及耐環保特點。應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，儀器儀表設備，安防設備，醫療設備，導航儀，數碼電子等應用。
.jpg)

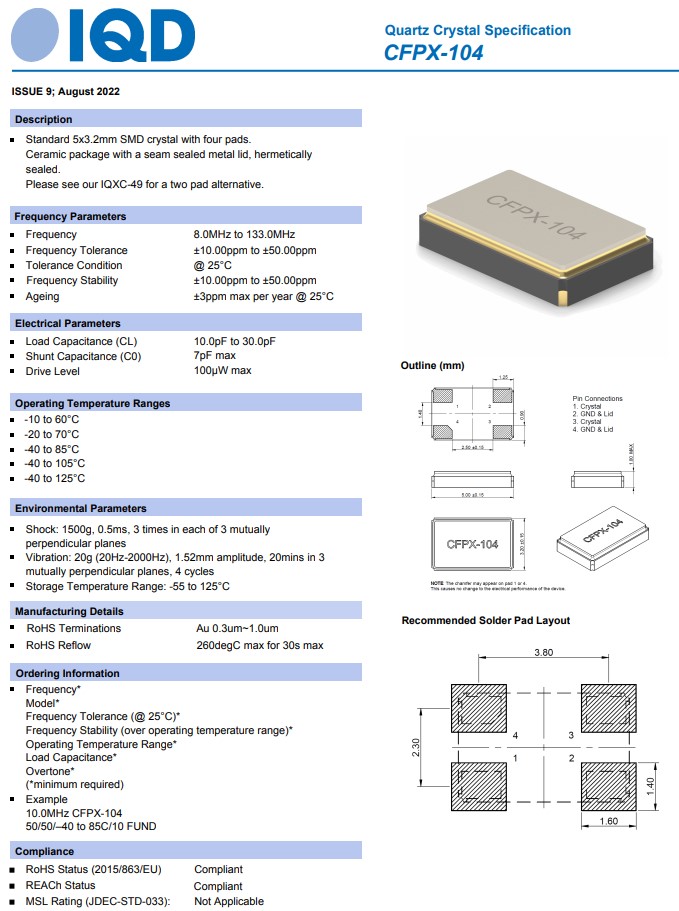

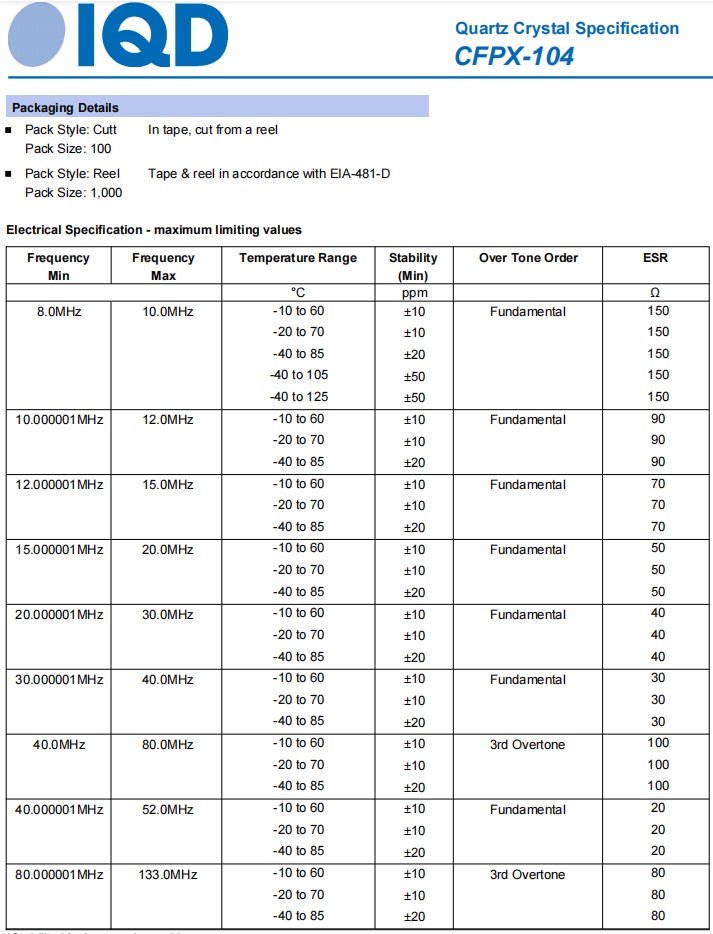

IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振,LFXTAL059531REEL,6G網絡晶振，參數表
| Frequency | 16.384 MHz |
| Frequency Tolerance | ±10.00ppm to ±50.00ppm |
| Tolerance Condition | @ 25°C |
| Frequency Stability | ±10.00ppm to ±50.00ppm |
| Ageing | ±3ppm max per year @ 25°C |
| Electrical Parameters | |
| Load Capacitance (CL) | 10.0pF to 30.0pF |
| Shunt Capacitance (C0) | 7pF max |
| Drive Level | 100uW max |
| Operating Temperature Ranges | -10 to 60℃ |
| -20 to 70℃ | |
| -40 to 85℃ | |
| -40 to 105℃ | |
| -40 to 125℃ |
.jpg)

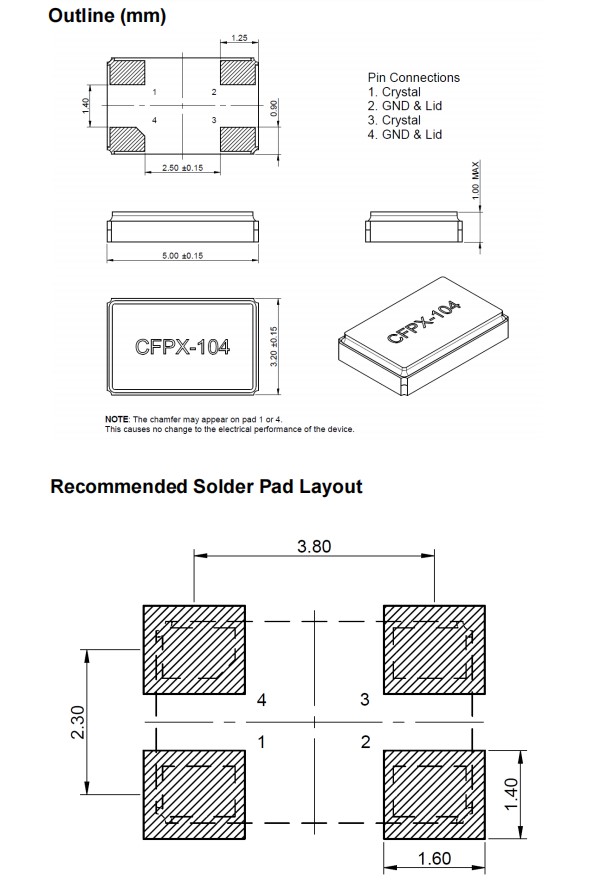

IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振,LFXTAL059531REEL,6G網絡晶振，尺寸圖
IQD伊克德石英晶體,CFPX-104,LFXTAL059528REEL,5032無源晶振,LFXTAL059531REEL,6G網絡晶振
5032mm體積的貼片晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接，產品無鉛對應，為無鉛產品.
| 制造商零件編碼 | 進口晶振 | 系列 | 描述 | 頻率 |
| LFXTAL069277REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 20PF SMD | 8 MHz |
| LFXTAL059532REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL059477REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.8000MHZ 15PF SMD | 12.8 MHz |
| LFXTAL059531REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL033643REEL | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL032878REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL065460REEL | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz |
| LFXTAL055901REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL059537REEL | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL056556REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.5000MHZ 18PF SMD | 12.5 MHz |
| LFXTAL033645REEL | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL053798REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059528REEL | IQD晶振 | CFPX-104 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz |
| LFXTAL072402REEL | IQD晶振 | CFPX-104 | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz |
| LFXTAL056583REEL | IQD晶振 | CFPX-104 | CRYSTAL 10.0000MHZ 12PF SMD | 10 MHz |
| LFXTAL059529REEL | IQD晶振 | CFPX-104 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz |
| LFXTAL059539REEL | IQD晶振 | CFPX-104 | CRYSTAL 48.0000MHZ 18PF SMD | 48 MHz |
| LFXTAL055999REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL036401REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL059526REEL | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL059535REEL | IQD晶振 | CFPX-104 | CRYSTAL 32.0000MHZ 18PF SMD | 32 MHz |
| LFXTAL059530REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL030820REEL | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz |
| LFXTAL033075REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL032817REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059523REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz |
| LFXTAL030819REEL | IQD晶振 | CFPX-104 | 16.0000M石英晶體諧振器 | 16 MHz |
| LFXTAL061627REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz |
| LFXTAL033265REEL | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL072404BULK | IQD晶振 | CFPX-104 | CRYSTAL 26.0000MHZ 18PF SMD | 26 MHz |
| LFXTAL059535BULK | IQD晶振 | CFPX-104 | CRYSTAL 32.0000MHZ 18PF SMD | 32 MHz |
| LFXTAL033643BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL059539BULK | IQD晶振 | CFPX-104 | CRYSTAL 48.0000MHZ 18PF SMD | 48 MHz |
| LFXTAL030820BULK | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz |
| LFXTAL059537BULK | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL033645BULK | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL059528BULK | IQD晶振 | CFPX-104 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz |
| LFXTAL059530BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL033075BULK | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL059523BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz |
| LFXTAL055663BULK | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL059531BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL033265BULK | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL032878BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL059532BULK | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL033328BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz |
| LFXTAL059522BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL032817BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059526BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL033644BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL050518REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 12PF SMD | 12 MHz |
| LFXTAL055663REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL061633REEL | IQD晶振 | CFPX-104 | CRYSTAL 13.5600MHZ 16PF SMD | 13.56 MHz |
| LFXTAL059158REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz |
| LFXTAL061486REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.1920MHZ 10PF SMD | 8.192 MHz |
| LFXTAL056808REEL | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL061642REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz |
| LFXTAL059522REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL075997REEL | IQD晶振 | CFPX-104 | CRYSTAL 9.9000MHZ SURFACE MOUNT | 9.9 MHz |
| LFXTAL030819BULK | IQD晶振 | CFPX-104 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz |
| LFXTAL056808BULK | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL059529BULK | IQD晶振 | CFPX-104 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz |
| LFXTAL065111REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
