- 產品型號：25194047
- 頻率：12MHz
- 尺寸：2.5x2.0mm
- 產品介紹：加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振,四腳貼片晶振,通訊設備6G晶振，HELE加高晶振，型號：HSX221SA，編碼為：X2B012000DC1H-X，小體積晶振尺...
-

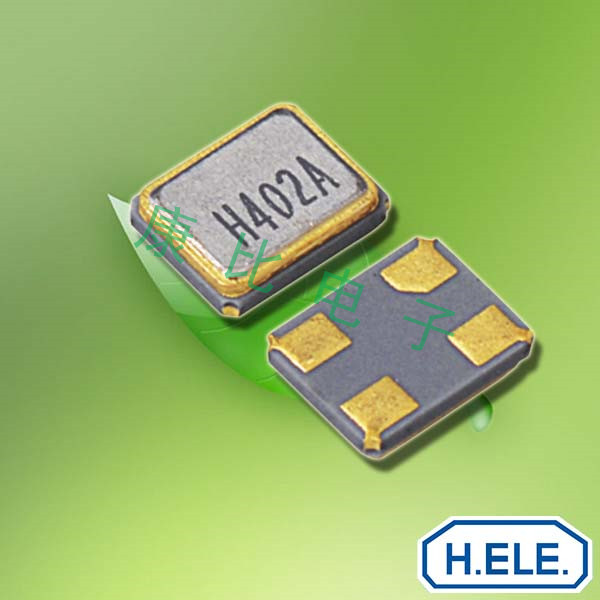

加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振
航欄(16).jpg)
.jpg)
加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振,四腳貼片晶振,通訊設備6G晶振，HELE加高晶振，型號：HSX221SA，編碼為：X2B012000DC1H-X，小體積晶振尺寸：2.5x2.0mm封裝，石英晶體諧振器，四腳貼片晶振，SMD石英晶體，無源晶振，石英晶振，無鉛環保晶振。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。石英晶振被廣泛用于：通訊設備，無線網絡，藍牙模塊，可穿戴設備，小型便捷式設備，智能手機，平板電腦，數碼電子，智能家居，安防設備等應用。
.jpg)

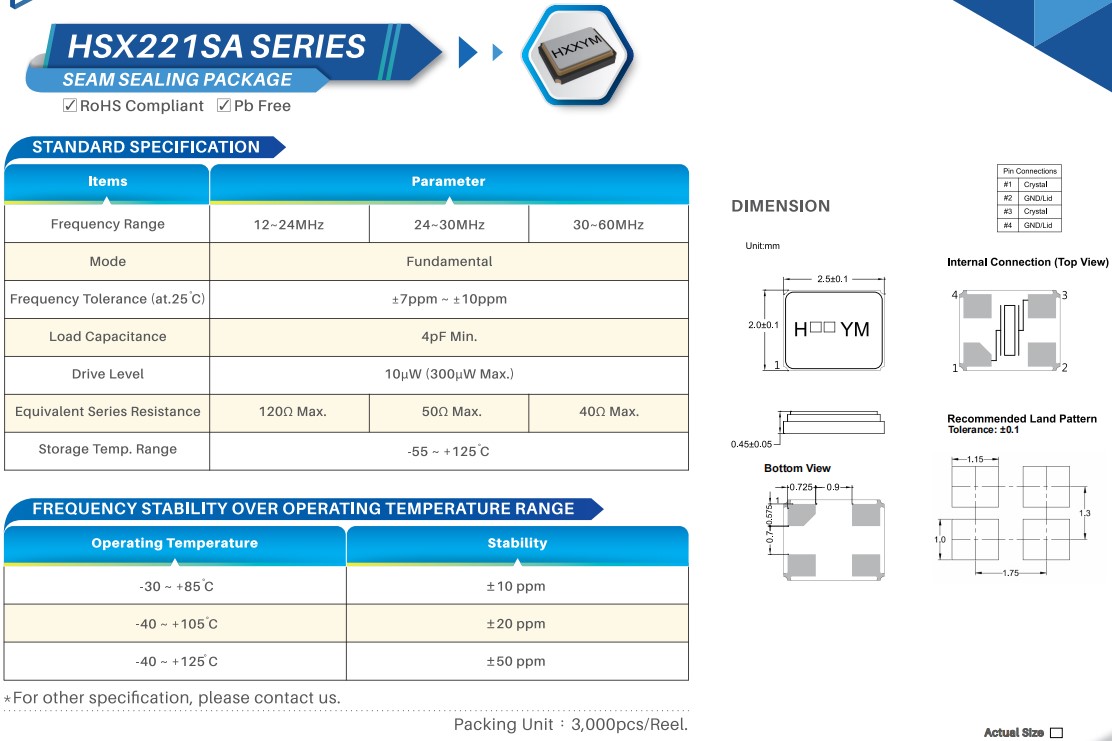

加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振,四腳貼片晶振,通訊設備6G晶振，參數表
.JPG)
.jpg)

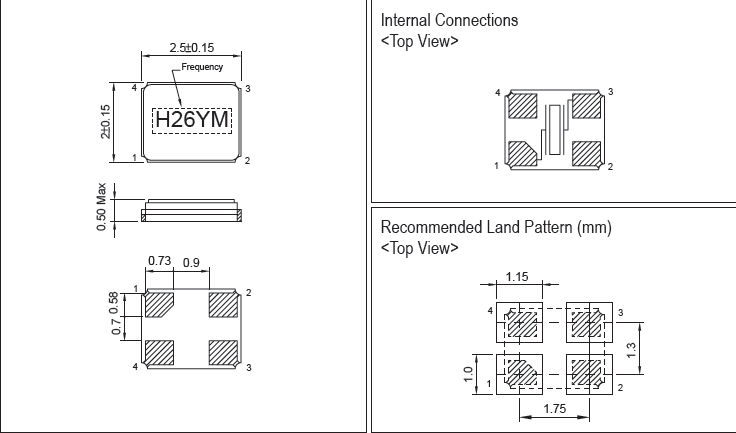

加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振,四腳貼片晶振,通訊設備6G晶振，尺寸圖
加高石英晶體諧振器,X2B012000DC1H-X,HSX221SA安防設備晶振,四腳貼片晶振,通訊設備6G晶振
2520mm體積非常小的SMD晶振器件,是民用小型無線數碼產品的最佳選擇,小體積的晶振被應用于,手機藍牙,GPS定位系統,無線通訊集,高頻率的穩定性能,非常好的減少電磁干擾的影響,是民用無線數碼產品最好的選擇,符合RoHS/無鉛.
| 編碼 | 貼片晶振 | 品牌 | 描述 |
| X2B026000M81H-HS | HSX221SA | HELE加高 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 |
| X2B016000BA1H-U | HSX221SA | HELE加高 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ |
| X2B012000BC1H-U | HSX221SA | HELE加高 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ |
| X2B012000DC1H-X | HSX221SA | HELE加高 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS |
| X2B016000B91H-HU | HSX221SA | HELE加高 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS |
| X2B027000BC1H-HU | HSX221SA | HELE加高 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS |
| X2B032000BC1H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520_4P RoHS |
| X2B024000BC1HA-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD_2520-4P RoHS |
| X2B026000B91H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS |
| X2B026000B71HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS |
| X2B040000BF1H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS |
| X2B024000BCIH-HV | HSX221SA | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS |
| X2B050000BC1H-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B040000BF1H-HT | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B030000BA1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-HR | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B038400BA1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B040000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B032000C81H-HU | HSX221SA | 加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B012000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B030000BA1H-HW | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-HV | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B026000BC1H-Z | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B016000BC1H-HV | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000L91H-S | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B030000FA1H-X | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B024000FK1H-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B81H-CHZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B02863ADC1H-W | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B032000D81H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B025000BI1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
