首頁晶振新聞 NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振

NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振

來源：http://diginow.com.cn 作者：康比電子 2022年07月16
NX74SA XO系列是具有極低抖動性能的高性能HCSL晶體振蕩器系列。小體積晶振尺寸7.0mmx5.0mm，HCSL 2頻可編程XO，根據客戶的需求，該系列器件可以使用FS 選擇引腳支持2個不同的頻率。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
產品特點：
2個可選輸出頻率
滿足100MHz的PCIe Gen2和Gen3時鐘要求
非常低的相位抖動 - < 1.0ps RMS 最大值。
寬頻率范圍 - 5~ 212.5MHz有源晶振
更厚的晶體以提高可靠性
低電源電流 - 最大70mA。
工業溫度范圍
無鉛且符合RoHS標準
 交貨時間快
應用：網絡系統，服務器和存儲系統，FPGA/ASIC 時鐘生成
NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振,NX7032C0200.000000,可編程晶振,ECERA振蕩器
FNB000003 Diodes Incorporated SaRonix-eCera™ FN 110MHz ±50ppm
FNC000011 Diodes Incorporated SaRonix-eCera™ FN 120MHz ±50ppm
FNC500123 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±25ppm
FNC500124 Diodes Incorporated SaRonix-eCera™ FN 125.009MHz ±25ppm
FNC500127 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±20ppm
FNC500134 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
FNC500135 Diodes Incorporated SaRonix-eCera™ FN 125.004MHz ±50ppm
SNI750006 Diodes Incorporated SaRonix-eCera™ SN 187.5MHz ±50ppm
SNK000007 Diodes Incorporated SaRonix-eCera™ SN 200MHz ±50ppm
SNL250005 Diodes Incorporated SaRonix-eCera™ SN 212.5MHz ±50ppm
LDA000002 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±50ppm
LDA620002 Diodes Incorporated SaRonix-eCera™ LD 106.25MHz ±50ppm
LDA620003 Diodes Incorporated SaRonix-eCera™ LD 106.25MHz ±50ppm
LDF000001 Diodes Incorporated SaRonix-eCera™ LD 150MHz ±50ppm
LDF000002 Diodes Incorporated SaRonix-eCera™ LD 150MHz ±50ppm
LDF620004 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±50ppm
LDF620006 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±50ppm
PB5000005 Diodes Incorporated SaRonix-eCera™ PB 50MHz ±50ppm
PB5000007 Diodes Incorporated SaRonix-eCera™ PB 50MHz ±50ppm
PB6250004 Diodes Incorporated SaRonix-eCera™ PB 62.5MHz ±50ppm
PB7500004 Diodes Incorporated SaRonix-eCera™ PB 75MHz ±50ppm
PB7770004 Diodes Incorporated SaRonix-eCera™ PB 77.76MHz ±50ppm
PBA000007 Diodes Incorporated SaRonix-eCera™ PB 100MHz ±50ppm
PBA620006 Diodes Incorporated SaRonix-eCera™ PB 106.25MHz ±50ppm
PBC500006 Diodes Incorporated SaRonix-eCera™ PB 125MHz ±50ppm


PBF620009 Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm
PDA000002 Diodes Incorporated SaRonix-eCera™ PD 100MHz ±50ppm
LDA000001 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±25ppm
LDC500003 Diodes Incorporated SaRonix-eCera™ LD 125MHz ±25ppm
LDC500004 Diodes Incorporated SaRonix-eCera™ LD 125MHz ±25ppm
LDF620003 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±25ppm
PB6250006 Diodes Incorporated SaRonix-eCera™ PB 62.5MHz ±25ppm
PBA000008 Diodes Incorporated SaRonix-eCera™ PB 100MHz ±25ppm
PBA620007 Diodes Incorporated SaRonix-eCera™ PB 106.25MHz ±25ppm
PBC500008 Diodes Incorporated SaRonix-eCera™ PB 125MHz ±25ppm
PXF620013 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±25ppm
LDA620001 Diodes Incorporated SaRonix-eCera™ LD 106.25MHz ±50ppm
LDA620004 Diodes Incorporated SaRonix-eCera™ LD 106.25MHz ±50ppm
LDC500001 Diodes Incorporated SaRonix-eCera™ LD 125MHz ±50ppm
LDC500002 Diodes Incorporated SaRonix-eCera™ LD 125MHz ±50ppm
LDF620001 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±50ppm
LDF620002 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±50ppm
PB5000006 Diodes Incorporated SaRonix-eCera™ PB 50MHz ±50ppm
PB5000008 Diodes Incorporated SaRonix-eCera™ PB 50MHz ±50ppm
PB6250005 Diodes Incorporated SaRonix-eCera™ PB 62.5MHz ±50ppm
PB7500005 Diodes Incorporated SaRonix-eCera™ PB 75MHz ±50ppm
PB7770003 Diodes Incorporated SaRonix-eCera™ PB 77.76MHz ±50ppm
PBA000009 Diodes Incorporated SaRonix-eCera™ PB 100MHz ±50ppm
PBA620008 Diodes Incorporated SaRonix-eCera™ PB 106.25MHz ±50ppm
PBC500007 Diodes Incorporated SaRonix-eCera™ PB 125MHz ±50ppm

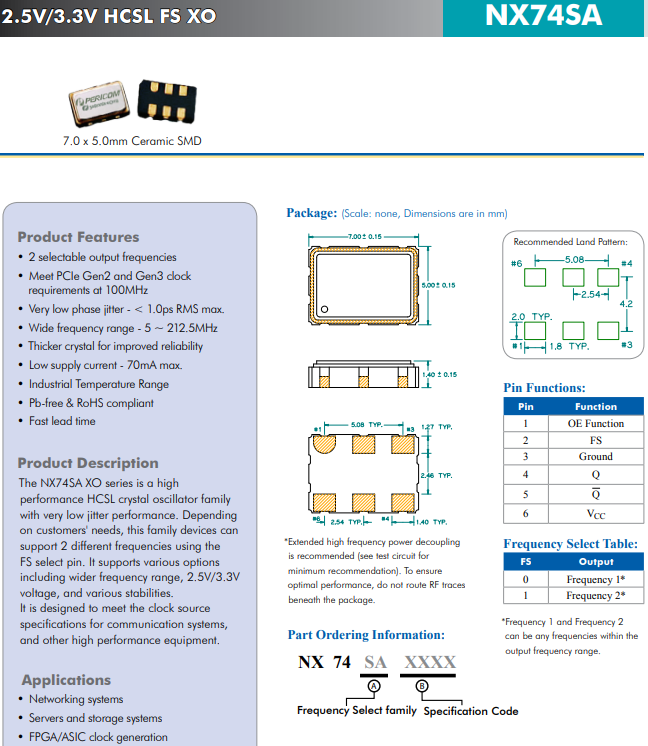

Product Parameters

ProductSeries NX7
Family XO
Output Logic HCSL
Supply Voltage (V) 3.3, 2.5
Freq Range (MHz) 5 to 212.5
Jitter RMS (ps) <1
PkgType Ceramic Seam
Package Size (mm) 7.0 x 5.0 x 2.0
Pads 6
NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振,NX7032C0200.000000,可編程晶振,ECERA振蕩器
產品參數:
產品系列 NX7
家庭 XO 石英振蕩器
輸出邏輯 HCSL
電源電壓 (V) 3.3, 2.5
頻率范圍 5至212.5MHz
抖動均方根 (ps) <1
包裝類型 陶瓷縫
包裝尺寸 7.0x5.0x2.0mm
墊 6腳
PBF000006 Diodes Incorporated SaRonix-eCera™ PB 150MHz ±50ppm
PD5000003 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm
PXC500010 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm
LDA000003 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±20ppm
PBF000005 Diodes Incorporated SaRonix-eCera™ PB 150MHz ±20ppm
LDF620005 Diodes Incorporated SaRonix-eCera™ LD 156.25MHz ±25ppm
PRSONT155 Diodes Incorporated SaRonix-eCera™ PR 155.52MHz ±50ppm
PRETHE156 Diodes Incorporated SaRonix-eCera™ PR 156.25MHz ±42ppm
WT325CF0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT325CF0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT325CF0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT325CF0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT325CF0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT325CF0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT325BI0030.000000 Diodes Incorporated SaRonix-eCera™ WT 30MHz ±2ppm
WT325BI0030.000000 Diodes Incorporated SaRonix-eCera™ WT 30MHz ±2ppm
WT325BI0030.000000 Diodes Incorporated SaRonix-eCera™ WT 30MHz ±2ppm
WT3251I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm
WT3251I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm
WT3251I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm
WT325BI0032.000000 Diodes Incorporated SaRonix-eCera™ WT 32MHz ±2ppm
WT325BI0032.000000 Diodes Incorporated SaRonix-eCera™ WT 32MHz ±2ppm
WT325BI0032.000000 Diodes Incorporated SaRonix-eCera™ WT 32MHz ±2ppm
WT3253I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm
WT3253I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm

NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振,NX7032C0200.000000,可編程晶振,ECERA振蕩器

NX71SA   CMOS 3.32.5 5 到 250 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm CMOS 2 頻可編程 XO
NX71SB   CMOS 3.32.5 5 到 250 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm CMOS 四頻可編程XO
NX72SA   LVPECL 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm LVPECL 2頻可編程XO
NX72SB   LVPECL 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm LVPECL 4頻可編程XO
NX73SA   LVDS 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm LVDS 2 頻可編程 XO
NX73SB   LVDS 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm LVDS 4 頻可編程 XO
NX74SA   HCSL 3.32.5 5 至 212.5 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm HCSL 2頻可編程XO
NX74SB   HCSL 3.32.5 5 至 212.5 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm HCSL 四頻可編程XO
NX76SA   CML 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm CML 2頻可編程XO
NX76SB   CML 3.32.5 5 到 1000 <1 7.0 x 5.0 x 2.0 6 7.0mmx5.0mm CML 四頻可編程XO

WT3253I0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±2ppm
WT325CF0019.200000 Diodes Incorporated SaRonix-eCera™ WT 19.2MHz ±500ppb
WT325CF0019.200000 Diodes Incorporated SaRonix-eCera™ WT 19.2MHz ±500ppb
WT325CF0019.200000 Diodes Incorporated SaRonix-eCera™ WT 19.2MHz ±500ppb
WT3253F0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT3253F0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT3253F0026.000000 Diodes Incorporated SaRonix-eCera™ WT 26MHz ±500ppb
WT325CF0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±500ppb
WT325CF0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±500ppb
WT325CF0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±500ppb
WT3251F0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT3251F0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT3251F0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±500ppb
WT3251I0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT3251I0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT3251I0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT325CI0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT325CI0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT325CI0016.367667 Diodes Incorporated SaRonix-eCera™ WT 16.367667MHz ±2ppm
WT325CI0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±2ppm
WT325CI0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±2ppm
WT325CI0016.368000 Diodes Incorporated SaRonix-eCera™ WT 16.368MHz ±2ppm
WT325CI0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±2ppm
WT325CI0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±2ppm
WT325CI0016.369000 Diodes Incorporated SaRonix-eCera™ WT 16.369MHz ±2ppm
NX74SA系列高性能HCSL晶體振蕩器,7050mm晶振,NX7032C0200.000000,可編程晶振,ECERA振蕩器
我們提供一流的晶體 (Xtal) 和晶體振蕩器 (XO)，針對您的設計要求進行了優化。
我們廣泛的晶體和晶體振蕩器提供：
輸出頻率范圍從 kHz 到 GHz
完整的輸出組合：  CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的 XO 產品組合，包括標準 XO、VCXO、TCXO 到超低抖動和高溫 XO
從 1.0V 到 3.3V 的多個電壓范圍（甚至是傳統的 5V）
大量 SMT 封裝選項組合，可滿足您的封裝要求
