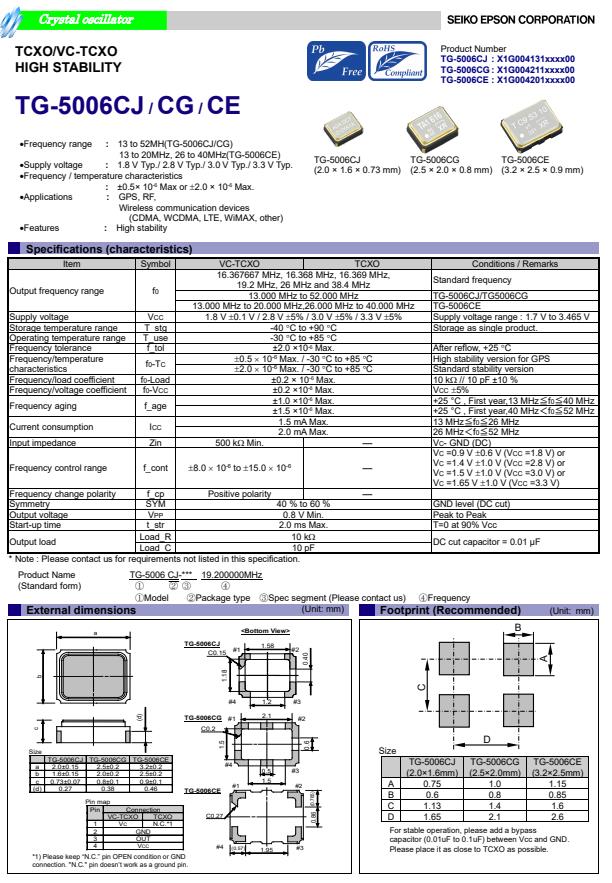

羅拉模塊低電壓溫補晶振X1G004131004916，由于愛普生公司的知名度持續上漲，吸引了無數用戶的關注，并為愛普生公司的產品刷新了新的記錄，銷量的創新高，使得愛普生公司名利雙收，也快速放大其在晶體行業的影響力，借著影響力快速推出了高性能的有源晶振，TCXO溫補晶振產品，這款TG-5006CJ晶振，編碼X1G004131004916，頻率26.000000兆赫，輸出剪波正弦波，電源電壓1.70 ~ 1.90 V，電源電壓(一般)1.800 V，尺寸(LxWxH)2.0 x 1.6 x 0.7 mm，工作溫度-30至+85°C，頻率公差+/- 2.0 ppm，具有低損耗，低抖動，高性能的特點,非常適用于羅拉模塊，無線模塊，智能家居，投影機，5G無線模塊，電子產品等領域，也是各種電子最佳的搭檔。

愛普生晶振	Model	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G004131002616	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-1.5 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131002916	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.600 to 3.000 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003116	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003216	TG-5006CJ	26.635300 MHz	2.00 x 1.60 x 0.73 mm	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003316	TG-5006CJ	28.974000 MHz	2.00 x 1.60 x 0.73 mm	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003416	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003616	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 2.940 V	+/-1.5 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131003716	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131003816	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-1.50 ppm
X1G004131004116	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-40 to +85 °C	+/-0.50 ppm
X1G004131004216	TG-5006CJ	32.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131004416	TG-5006CJ	24.576000 MHz	2.00 x 1.60 x 0.73 mm	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131004916	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G005371020016	TG2016SKA	26.000000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371020316	TG2016SKA	38.400000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371020616	TG2016SKA	49.580000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371030116	TG2016SKA	26.000000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm

愛普生公司擁有世界頂端的機械技術,是全球數碼映像的領軍企業,同時也生產打印機和影印機等產品.而在電子元器件中,占主席地位,石英晶振中,EPSON愛普生做的異常出色具了解，愛普生現已實現成為石英部件的NO1，40多年前為支持SEIKO(精工)手表而成立的Epson石英部件部門強在PC、NB、手機及消費電子等運用上,市占率高達七八成,其中又以32.768k晶振稱霸業界。愛普生以提供原子鐘的精準振蕩器知名業界。
