智能電表時鐘模塊晶振Q3805CA10011100，愛普生公司是一家敢于拼搏的知名企業，通過不斷打造自身強有力的競爭力，并且敢于突破自身的精神，開發了大量優質的產品，所生產的產品種類眾多，專注于生產高性能的石英晶體振蕩器，無源晶振，有源晶振等產品，其中也包含推出了EG-2121CA晶振，編碼Q3805CA10011100，頻率70.000000兆赫，輸出WaveLVDS，電源電壓2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作溫度0至+70°C，頻率公差±100ppm，這是一款微型封裝的有源貼片晶振，具備良好的穩定性能，非常適合智能電表時鐘模塊，儀器儀表，通信設備等領域。

智能電表時鐘模塊晶振Q3805CA10011100，愛普生晶振公司的貼片式石英晶振振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH / SONET發射基站等領域.符合RoHS/無鉛.

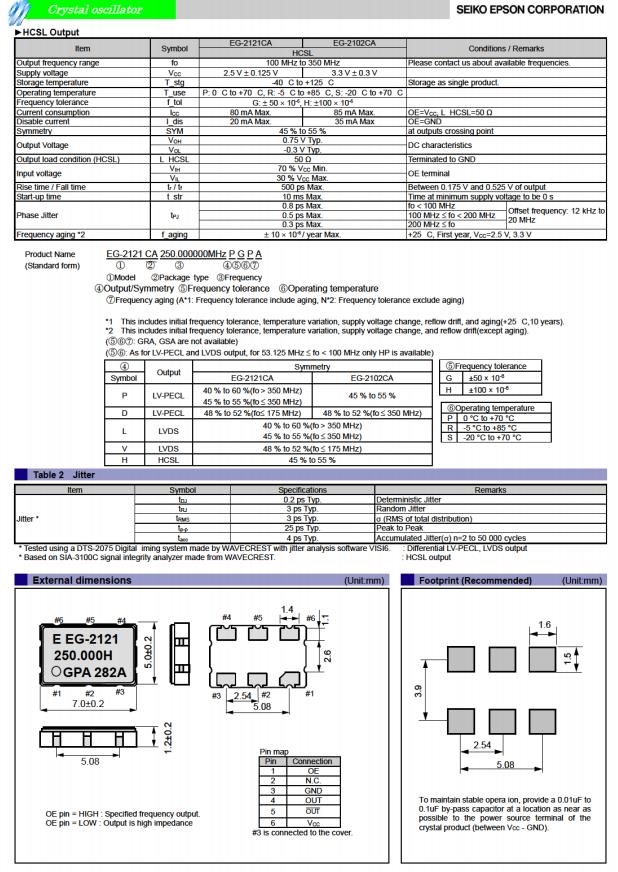

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
Q3805CA10011100	EG-2121CA	70.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011200	EG-2121CA	248.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011300	EG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011400	EG-2121CA	75.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011500	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10011600	EG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011700	EG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011800	EG-2121CA	311.040000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10011900	EG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	差分晶振	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012000	EG-2121CA	155.520000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012100	EG-2121CA	167.331600 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012200	EG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012300	EG-2121CA	156.257000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012400	EG-2121CA	125.000260 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012500	EG-2121CA	74.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012600	EG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10012700	EG-2121CA	95.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10012800	EG-2121CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C

石英晶體振蕩器就是我們俗稱的有源晶振，是一種由石英晶體（二氧化硅晶體）的壓電效應制成的諧振器件。其基本結構如下：在一定方位角（稱為晶圓，可以是方形，矩形或圓形）切片一塊石英晶體，并將其涂在兩個相應的表面上。銀層作為電極，每個電極上焊接一根引線連接到引腳，并加入封裝殼體，形成石英晶體諧振器，簡稱石英晶體或晶體，簡稱晶體振蕩器。由IC構成的振蕩電路的晶體元件稱為晶體振蕩器。其產品通常包裝在金屬外殼中，也可以包裝在玻璃外殼，陶瓷或塑料中。
