首頁晶振新聞 UF324/34系列超低抖動HCLS晶體振蕩器

UF324/34系列超低抖動HCLS晶體振蕩器

來源：http://diginow.com.cn 作者：康比電子 2022年07月11

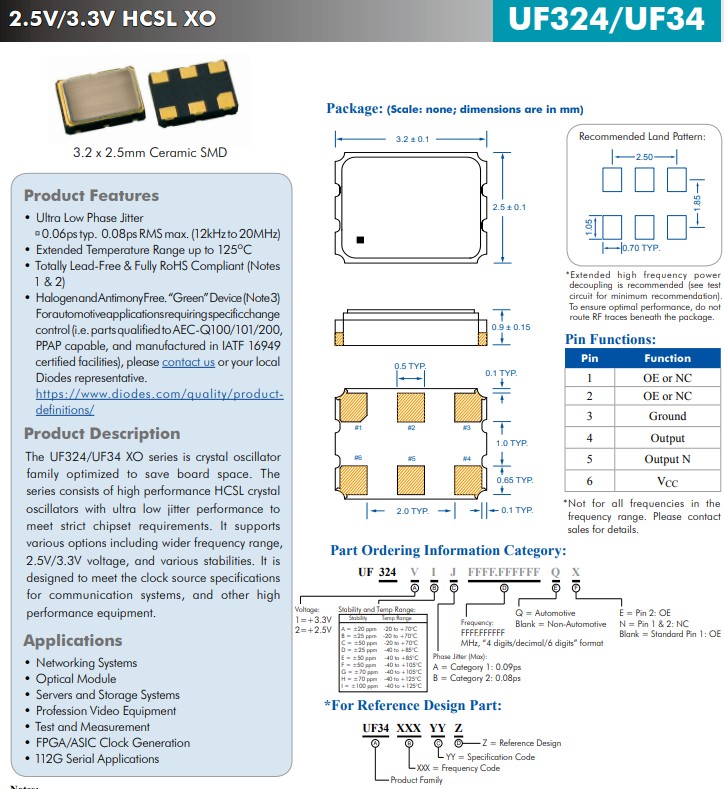

UF324/UF34 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。UF324/34系列，小體積尺寸3.2x2.5mm、超低抖動HCLS晶體振蕩器，該系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征：
超低相位抖動 有源晶振
0.06ps 典型值。0.08ps RMS 最大值。（12kHz至20MHz）
擴展溫度范圍高達 125℃
完全無鉛且完全符合 RoHS 標準
不含鹵素和銻。“綠色”設備
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
KK3270047 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270035 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KK3270007 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270053 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KK3270041 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KK3270043 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
S1700C-20.0000 Diodes Incorporated SaRonix™ S1700 20MHz ±100ppm
KK3270048 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KX3213H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3213A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
KX3213D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz -
KX2511G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
NX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ NX 56MHz ±50ppm
KX2511D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2511Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz -
NX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ NX 59MHz ±50ppm
FRSONT019 Diodes Incorporated SaRonix-eCera™ FR 19.44MHz ±25ppm
FRXDSL035 Diodes Incorporated SaRonix-eCera™ FR 35.328MHz ±25ppm
FRSONT038 Diodes Incorporated SaRonix-eCera™ FR 38.88MHz ±25ppm
KX2013C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm


KX2013E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
NX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ NX 120MHz ±50ppm
NX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ NX 25.001875MHz ±25ppm
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb
JT255CF0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb
NX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ NX 91.5MHz ±50ppm
NX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ NX 70.656MHz ±25ppm
NX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ NX 104MHz ±25ppm
NX7021E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
SN10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm
SNGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm
LD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
LDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm
LDF550001 Diodes Incorporated SaRonix-eCera™ LD 155.52MHz ±25ppm
PDF620004 Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm
S1613B-27.0000 Diodes Incorporated SaRonix-eCera™ FN 27MHz ±50ppm
KM3270002 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm
KM3270003 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm
PXA000010 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±50ppm
PXA000010 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±50ppm

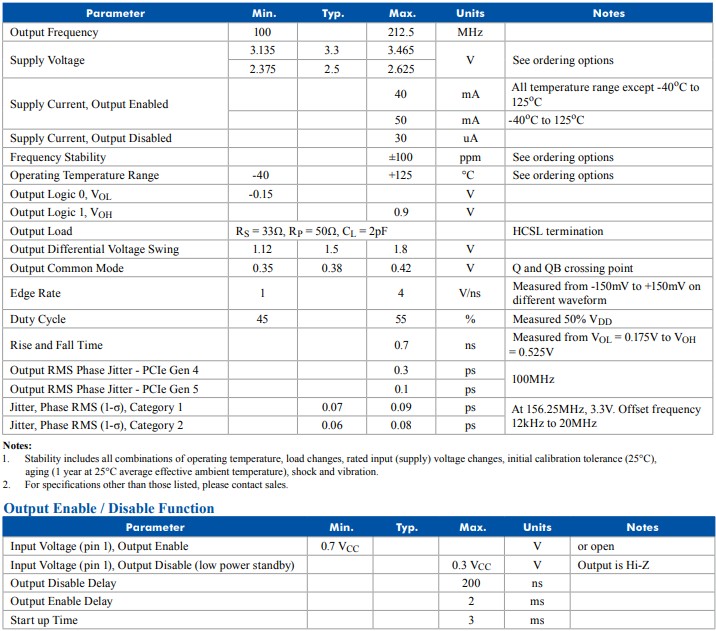

Product Parameters

Stability (PPM) 20 to 100
Package Size (mm) 3.2 x 2.5 x 0.9
PkgType Ceramic Seam
Freq Range (MHz) 100 to 212.5
Jitter RMS (ps) 0.08 to 0.09
Output Logic HCSL
Supply Voltage (V) 3.3, 2.5
Pads 6
ProductSeries UF3
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
產品參數：
穩定性  20PPM到100PPM
包裝尺寸 3.2x2.5x0.9mm小體積晶振
包裝類型 陶瓷縫
頻率范圍  100MHz至212.5MHz
抖動均方根 (ps) 0.08 至 0.09
輸出邏輯 HCSL
電源電壓  3.3V, 2.5V
墊 6腳
產品系列 UF3
NX5031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
FD0100003 Diodes Incorporated SaRonix-eCera™ FD 1MHz ±50ppm
FD0180008 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±50ppm
FD0180009 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±25ppm
FD0180010 Diodes Incorporated SaRonix-eCera™ FD 1.8432MHz ±50ppm
FD0200013 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±25ppm
FD0200014 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±50ppm
FD0200015 Diodes Incorporated SaRonix-eCera™ FD 2.048MHz ±50ppm
FD0350006 Diodes Incorporated SaRonix-eCera™ FD 3.579545MHz ±50ppm
FD0360017 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±50ppm
FD0360018 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±25ppm
FD0360019 Diodes Incorporated SaRonix-eCera™ FD 3.6864MHz ±50ppm
FD0400021 Diodes Incorporated SaRonix-eCera™ FD 4MHz ±25ppm
FD0500003 Diodes Incorporated SaRonix-eCera™ FD 5MHz ±50ppm
FD0600006 Diodes Incorporated SaRonix-eCera™ FD 6MHz ±25ppm
FD0610002 Diodes Incorporated SaRonix-eCera™ FD 6.144MHz ±20ppm
FD0730013 Diodes Incorporated SaRonix-eCera™ FD 7.3728MHz ±50ppm
FD0800013 Diodes Incorporated SaRonix-eCera™ FD 8MHz ±50ppm
FD0810003 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±50ppm
FD0810004 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±25ppm
FD0810005 Diodes Incorporated SaRonix-eCera™ FD 8.192MHz ±50ppm
FD0820001 Diodes Incorporated SaRonix-eCera™ FD 8.25MHz ±50ppm
FD1000015 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±50ppm
FD1000016 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±25ppm
FD1000017 Diodes Incorporated SaRonix-eCera™ FD 10MHz ±50ppm
 百利通亞陶晶振UF系列超低 抖動，微型晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活設計需求。有多種輸出標準可供選擇:LVPECL，LVDS和HCSL，以及 2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
FD1100008 Diodes Incorporated SaRonix-eCera™ FD 11.0592MHz
FD1120009 Diodes Incorporated SaRonix-eCera™ FD 11.2896MHz
FD1200028 Diodes Incorporated SaRonix-eCera™ FD 12MHz
FD1200029 Diodes Incorporated SaRonix-eCera™ FD 12MHz
FD1200030 Diodes Incorporated SaRonix-eCera™ FD 12MHz
FD1220014 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz
FD1220015 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz
FD1220016 Diodes Incorporated SaRonix-eCera™ FD 12.288MHz
FD1350007 Diodes Incorporated SaRonix-eCera™ FD 13.5MHz
FD1430016 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz
FD1430018 Diodes Incorporated SaRonix-eCera™ FD 14.3181MHz
FD1470015 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz
FD1470017 Diodes Incorporated SaRonix-eCera™ FD 14.7456MHz
FD1600015 Diodes Incorporated SaRonix-eCera™ FD 16MHz
FD1600016 Diodes Incorporated SaRonix-eCera™ FD 16MHz
FD1600017 Diodes Incorporated SaRonix-eCera™ FD 16MHz
FD1630009 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz
FD1630010 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz
FD1630011 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz
FD1630012 Diodes Incorporated SaRonix-eCera™ FD 16.384MHz
FD1650001 Diodes Incorporated SaRonix-eCera™ FD 16.5MHz
FD1800003 Diodes Incorporated SaRonix-eCera™ FD 18MHz
FD1840014 Diodes Incorporated SaRonix-eCera™ FD 18.432MHz
FD1940001 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz
FD1940002 Diodes Incorporated SaRonix-eCera™ FD 19.44MHz
UF324/34系列超低抖動HCLS晶體振蕩器,UF3242DA0100.000000,低抖動晶振,ECERA高性能晶振
UFQ252/22 20~100 2.5 x 2.0 x 0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVPECL晶體振蕩器
UFQ253/23 20~100 2.5 x 2.0 x 0.8 LVDS 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVDS差分晶振
UFQ254/24 20~100 2.5 x 2.0 x 0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動HCLS晶體振蕩器
UFQ322/32 20~100 3.2 x 2.5 x 0.9 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ323/33 20~100 3.2 x 2.5 x 0.9 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ324/34 20~100 3.2 x 2.5 x 0.9 HCSL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動HCLS晶體振蕩器
UFQ502/52 20~100 5.0 x 3.2 x 1.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVPECL晶體振蕩器
UFQ503/53 20~100 5.0 x 3.2 x 1.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVDS晶體振蕩器
UFQ504/54 20~100 5.0 x 3.2 x 1.2 HCSL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動HCLS晶體振蕩器
UFQ702/72 20~100 7.0 x 5.0 x 1.4 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVPECL晶體振蕩器
UFQ703 / 73 20~100 7.0 x 5.0 x 1.4 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVDS晶體振蕩器
UFQ704 / 74 20~100 7.0 x 5.0.x 1.4 HCSL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動HCLS晶體振蕩器
