隨著晶體行業的快速發展，市場上出現新型的晶振產品，并提供更多尺寸的選擇空間，愛普生并沒有止步于只滿足消費者當前最迫切的需求，而是將眼光放至更長遠的未來，主動承擔起社會責任。并針對當下市場開發高品質的有源晶振產品，以滿足市場的需求。

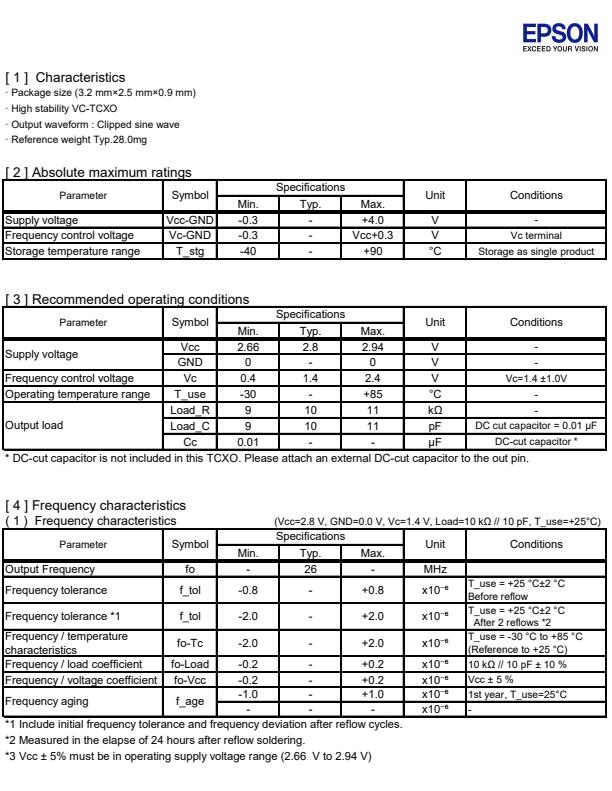

愛普生晶振公司TG-5006CE晶振，編碼X1G004201002000，頻率26.000000兆赫，輸出剪波正弦波，電源電壓2.66 ~ 2.94 V，電源電壓(一般)2.800 V，尺寸(LxWxH)3.2 x 2.5 x 0.9 mm，工作溫度-30至+85°C，頻率公差+/- 2.0 ppm，這是一款3225mm的有源晶振，帶電壓晶振，TCXO溫補晶振，具備高精度，低損耗，低電壓，低相噪聲 低抖動之特點，非常適合用于投影儀，智能家居，醫療設備，無線模塊，低功耗藍牙智能燈控制模塊等領域。

Product Number	Model	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G004201000600	TG-5006CE	16.367667 MHz	3.20 x 2.50 x 0.90 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201000800	TG-5006CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201000900	TG-5006CE	19.200000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201001000	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201001300	TG-5006CE	16.367667 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004201001700	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004201002000	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004201002300	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201002500	TG-5006CE	32.000000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004201002600	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201003200	TG-5006CE	20.000000 MHz	3.20 x 2.50 x 0.90 mm	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004201003300	TG-5006CE	25.000000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004201006200	TG-5006CE	32.000000 MHz	3.20 x 2.50 x 0.90 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
Product Number00	Model	愛普生晶振	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005101001000	TG3225CEN	17.920000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101001500	TG3225CEN	12.000000 MHz	3.20 x 2.50 x 0.90 mm	3.000 to 3.600 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.50 ppm
X1G005101001800	TG3225CEN	24.515300 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101002600	TG3225CEN	24.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101002900	TG3225CEN	16.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101003300	TG3225CEN	25.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101003600	TG3225CEN	36.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101004100	TG3225CEN	40.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm
X1G005101004400	TG3225CEN	20.000000 MHz	3.20 x 2.50 x 0.90 mm	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C	+/-2.00 ppm

石英晶體振蕩器為電子產品提供穩定的時鐘頻率，其精度和穩定度對下游產品的質量、性能以及后期維護成本具有至關重要的影響。而石英晶體振蕩器產品的微型化和片式化則對其精度和穩定度提出更大挑戰，由于可穿戴設備等下游應用興起，設備需要滿足低功耗以延長產品使用時長，使產品向更高精度、更高穩定度及更低功耗方向發展。
