首頁晶振新聞 亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125

亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125

來源：http://diginow.com.cn 作者：康比電子 2022年07月13
我們的振蕩器是低抖動、高度穩定的晶體振蕩器模塊，將成熟的石英晶體諧振器技術與領先的時鐘 IC 技術相結合。我們的電壓控制振蕩器提供 CMOS/TTL、LVPECL或LVDS輸出邏輯，可為各種應用（包括 WiFi、WiMax、PON 和 SONET/SDH 等電信標準）實現非常嚴格的 ±20 ppm 整體精度。此外，一些振蕩器產品還具有電壓控制功能，可以在線調整輸出頻率，用于數據信號采集、時鐘重定時和抖動衰減或頻率合成。

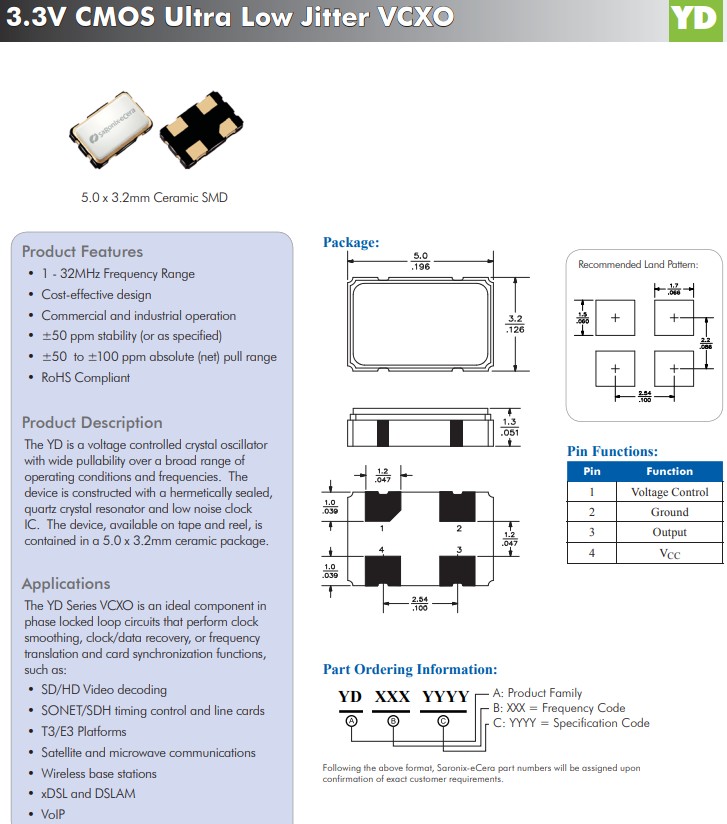

亞陶晶振YD系列是一種壓控晶體振蕩器，在廣泛的工作條件和頻率范圍內具有廣泛的可拉性。該器件由密封的石英晶體諧振器和低噪聲時鐘IC構成。該器件采用卷帶包裝，小體積晶振采用5.0x3.2mm陶瓷封裝。YD系列超低抖動VCXO是執行時鐘平滑、時鐘/數據恢復或頻率轉換和卡同步功能的鎖相環電路中的理想組件。
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
FD6250011 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm
FD6400006 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±50ppm
FD6400007 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±25ppm
FD6400008 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±50ppm
FD6600015 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±25ppm
FD6600016 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±50ppm
FD6600017 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±50ppm
FD6660016 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±50ppm
FD6660017 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±25ppm
FD6660018 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±50ppm
FD6660019 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±50ppm
FD6660020 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±25ppm
FD6660021 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±50ppm
FD6660024 Diodes Incorporated SaRonix-eCera™ FD 66.667MHz ±25ppm
FD6800001 Diodes Incorporated SaRonix-eCera™ FD 68MHz ±50ppm
FD7420006 Diodes Incorporated SaRonix-eCera™ FD 74.25MHz ±25ppm
FD7500010 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±50ppm
FD7500011 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±25ppm
FD7500013 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±50ppm
FD7770004 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770005 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±25ppm
FD7770006 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770007 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770008 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±25ppm
FD7770009 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
特征：
頻率范圍：1至32MHz 有源晶振
高性價比的設計
商業和工業運營
±50 ppm 穩定性（或按規定）
±50 至 ±100 ppm 絕對（凈）牽引范圍
符合 RoHS 標準
應用：
標清/高清視頻解碼
SONET/SDH 時序控制和線卡
T3/E3 平臺
衛星和微波通信
無線基站
xDSL 和 DSLAM
網絡電話
FDC500014 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm
FK0100001 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm
FK0100002 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm
FK0180004 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm
FK0180005 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±25ppm
FK0180006 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm
FK0200002 Diodes Incorporated SaRonix-eCera™ FK 2MHz ±50ppm
FK0360002 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm
FK0360003 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±25ppm
FK0360004 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm
FK0400005 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±25ppm
FK0400007 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±50ppm
FK0500002 Diodes Incorporated SaRonix-eCera™ FK 5MHz ±50ppm
FK0530001 Diodes Incorporated SaRonix-eCera™ FK 5.33MHz ±50ppm
FK0610001 Diodes Incorporated SaRonix-eCera™ FK 6.14MHz ±25ppm
FK0670001 Diodes Incorporated SaRonix-eCera™ FK 6.758MHz ±25ppm
FK0800004 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm
FK0810001 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm
FK0810002 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±25ppm
FK0810003 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm
FK1000006 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm
FK1000007 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±25ppm
FK1000008 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm
FK1200010 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm
FK1200013 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±25ppm


FK1220006 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm
FK1220007 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm
FK1220008 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm
FK1220009 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm
FK1300008 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm
FK1300010 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm
FK1430004 Diodes Incorporated SaRonix-eCera™ FK 14.318MHz ±50ppm
FK1600003 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±25ppm
FK1600004 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm
FK1600005 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm
FK1630003 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm
FK1630004 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±25ppm
FK1630005 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm
FK1840001 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm
FK1840002 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±25ppm
FK1840003 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm
FK1940001 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm
FK1940002 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±25ppm
FK1940004 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm
FK2000022 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm
FK2000023 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±25ppm
FK2000025 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm
FK2400012 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm
FK2400013 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm
FK2400014 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm

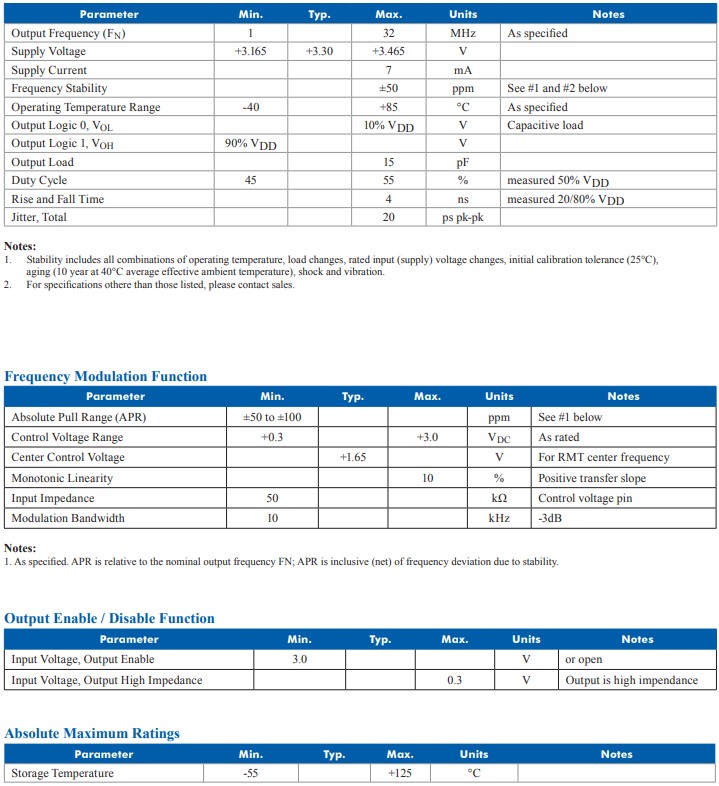

Product Parameters

ProductSeries YD_3
Family VCXO
Legacy PN None
Output Logic CMOS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 1 to 66
Jitter RMS (ps) <2 ps RMS
Package Type Ceramic Seam
Package Size (mm) 5.0 x 3.2 x 1.3
Pads 4
NotRecommended 0
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
產品參數：
產品系列 YD_3
家庭 VCXO壓控振蕩器
舊版 PN 沒有任何
輸出邏輯 CMOS
電源電壓 3.3
拉距 50 至 100 ppm
頻率范圍 (MHz) 1 至 66
抖動均方根 (ps) <2 ps RMS
包裝類型 陶瓷縫
包裝尺寸 5.0x3.2x1.3mm
墊 4腳
不建議 0
FK2450008 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm
FK2450009 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm
FK2450010 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm
FK2500018 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2500019 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm
FK2500026 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2600016 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600017 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm
FK2600019 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600020 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm
FK2600024 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600027 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±20ppm
FK2600028 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2700001 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm
FK2700015 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2700016 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm
FK2700017 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±20ppm
FK2700018 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2700021 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2820001 Diodes Incorporated SaRonix-eCera™ FK 28.224MHz ±25ppm
FK3000001 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000003 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±25ppm
FK3000004 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000005 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000006 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
YD 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 5.0x3.2x1.3 4 超低抖動晶振
YJ 3.3V None CMOS 1 to 52 <2 ps RMS Ceramic Seam 2.5x2.0x0.9 4 超低抖動
YK 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 3.2x2.5 x1.0 4 超低抖動
YN 3.3V ST1307 CMOS 66 to 166 <2 ps RMS Ceramic Seam 7.0x5.0x2.0 6 PLL Base, 相位抖動 > 1ps
